kg-d2000

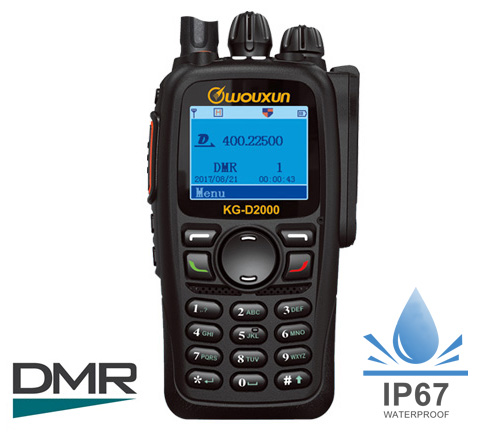

Dual Time Slot , Digital and Analogue KG-D2000

MAIN FUNCTION
  • 1000 Channels
  • 1000 Contacts
  • 250 Receiving Groups
  • 250 Zones
  • 250 Scan List
  • Radio ID
  • Radio TX Contacts
  • Radio Receive Groups
  • Radio Color Code
  • Frequency Range
  • Program Key
  • Digital Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • Selective Backlight
  • One Touch Access / Talk Around
  • Power On Password
  • Radio Program Password
  • Menu Encryption or Menu Hide
  • Power Save Mode
  • Group Scan
  • Tail Elimination
  • Text Message
  • Radio Disable or Enable
  • Lone Work
  • Radio Check
  • Flash Light
  • Clock Display
  • CTCSS , Support Non Standard
  • Recording , Continuous Record 8 Hours
  • Play Recording File
  • Customerized Interface
  • DTMF Encoding and Decoding
  • Transmit Time-out
  • TOT Rekey Delay
  • FM Radio
  • Waterproof IP67   ( View IP67 Test Report )
  • Fimware Upgradable
  • Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Intergration
Frequency Range 136-174 or 300-350 MHz
350-400 or 400-470 MHz
Channel Number 1000
Operating Temperature -20℃~+40℃
Antenna Resistance 50Ω
Working Voltage 7.4 VDC
Weight 285 g
Size 64 x 36 x 130 (mm)



Transmitter
FM Modulation 12.5KHz : 11KOF3E ,
25KHz : 16KOF3E
4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data) : 7K60EXE
Adjancent Channel Power ≤-60dB
Frequency Stability ±1 PPM
Audio Distortion ≤5%
Vocoder Type AMBE+2TM
Audio Response +1dB~-3dB
Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
Bit Error Ratio ≤5%
Modulation Limit ±2.5KHz@12.5KHz
Output Power UHF , H : 4W , L : 1W



Receiver
Analog Receive Sensitivity 0.25µV@12dB SINAD
Digital Receive Sensitivity 0.25µV(BER:5%)
Adjacent Channel
Selectivity
≤60dB@12.5KHz
Audio Response +1dB~-3dB
Audio Distortion ≤5%
Audio Power 1W
Inter Modulation ≥65dB




STANDARD ACCESSORY

BLO-017   CHA-022
battery

kg-d2000 charger
Battery , 1900mAh   Charger

CHA-022   ANO-026
kg-d2000 power adapter

kg-d2000 antenna
Power Supply Adapter   Anatenna

OTH-005   OTH-001
hand strap

belt clip
Hand Strap   Belt Clip
