radio menu Two Way Radio KG-939



  CLICK HERE CLOSE LIST radio list

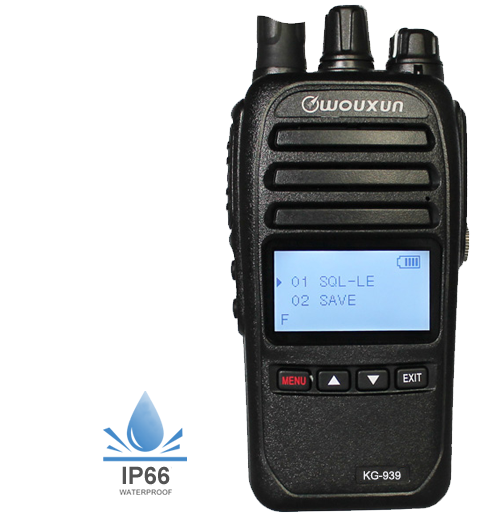

kg-939

MAIN FUNCTIONS
main function VOX Function
main function CTCSS/DCS Scan
main function 107Groups of CTCSS , 50 Groups of DCS
main function Wide /narrow bandwidth selection(12.5KHz/25KHz)
main function Non-Standard CTCSS / DCS Supported
main function 8 Groups of Scrambler
main function Multi Sidekey Settings
main function Single Tone Pulse Frequencies , 2100 / 1750 / 1450 / 1000Hz
main function Compander Function
main function Waterproof IP67    ( View IP67 Test Report )
main function CH , FREQ , CH Name Selectable
order radios


TECHNICAL SPECIFICATION
Intergration
   Ranges 400 - 470MHz , PMR446 , PMR446+LPD433 (TX/RX)
   Memory Channels 256
   Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Work Mode F2D / F3E
   Power Supply 7.4 VDC
   Working Temperature -20℃ ~ +40℃
   Antenna Impedance 50 Ω
   Weight 340 g
   Size 132 x 62 x 37 (mm)
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF: 4W / 2W / 0.5W


STANDARD ACCESSORY
kg-939 accessory

OPTIONAL  ACCESSORY
BLO-025   CHA-027   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 3200mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset

earphone

headset

earphone
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CHA-018   ELO-005
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-038   ANO-012   AAO-001   AAO-002
antenna

antenna

adaptor

adaptor
Antenna   Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
