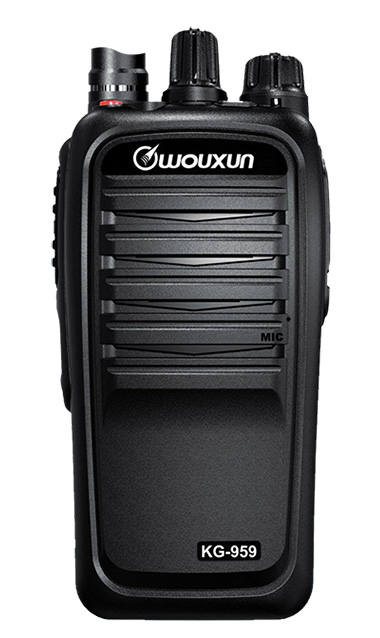

kg-959

MAIN FUNCTIONS
main function Non-standard tone(CTCSS/DCS)
main function DTMF encode and decode
main function Wide /narrow bandwidth selection(12.5KHz/25KHz)
main function Remote Stun , Kill Monitor , Inspection
main function 16 groups of banking , 256 memory channels
main function Emergency alarm
main function Scan Group
main function Work Group
main function Battery Save
main function Radio direct charging
main function DIY extended interface
main function PTT-ID
main function Waterproof IP67    ( View IP67 Test Report )
main function Transmit Overtime Timer
main function Busy Channel Lockout
main function Superheterodyne Receiver Type
order radios


TECHNICAL SPECIFICATION
Intergration
   Frequency Range

   Suitable For Different Countries or Areas
   UHF : 420-520MHz / 400-480MHz
   400-470MHz / 350-390MHz
   VHF : 66-88MHz / 136-174MHz
   245-250MHz / 216-280MHz

   Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Channel Number 256
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4VDC
   Antenna Impedance 50Ω
   Weight 340 g
   Size 62 x 37 x 132 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power 4W / 1W , 0.5W(PMR)


STANDARD ACCESSORY
kg-959 accessory


OPTIONAL  ACCESSORY
BLO-025   CHA-027   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 3200mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset

earphone

headset

earphone
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CHA-018   ELO-005
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-038   ANO-012   AAO-001   AAO-002
antenna

antenna

adaptor

adaptor
Antenna   Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
