radio menu Two Way Radio KG-UVA1



  CLICK HERE CLOSE LIST radio list

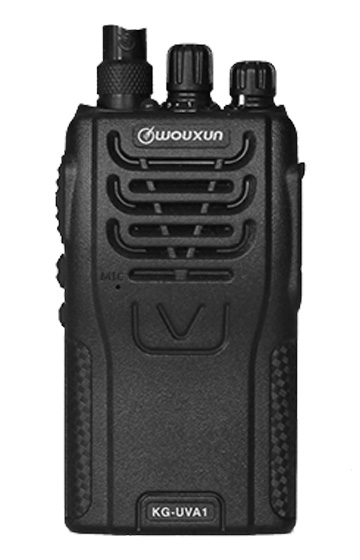

kg-uva1



main function IP55 Waterproof
main function Voice Prompt
main function Low Battery Prompt
main function Busy Channel Lockout



MAIN FUNCTIONS
main function Working Mode :U-V,V-U,V-V,U-U can be set freely
main function SOS Function
main function 1750Hz Burst Tone
main function DTMF Encoding Function
main function 105 Groups DCS/50 Groups CTCSS
main function Bright Flashlight Illumination
main function Band Can Be Set Freely: VHF TX-UHF RX or UHF TX-VHF RX
main function English Voice Guide
main function FM Radio
main function Wide/Narrow Bandwidth Selection(25KHz /12.5KHz )
main function Priority Channel Scan
main function High/Low Power Selection(VHF:5W/1W UHF4W/1W)
main function Add Scanning Channel
main function Multi Scan Mode (TO/CO/SE)
main function VOX Transmission(Level Adjustable)
main function Transmit Overtime Voice Prompt
main function Begin/End Transmitting BEEP Prompt
main function Program By Computer
main function Wire Clone Function
main function Superheterodyne Receiver Type
order radios


TECHNICAL SPECIFICATION
Intergration
Frequency Range Can Be Suitable For Different Countries or Areas
136-174&216-280MHz (RX/TX)
136-174&350-470MHz (RX/TX)
136-174&400-480MHz (RX/TX)
136-174&420-520MHz (RX/TX)
144-146&430-440MHz (RX/TX)
144-148&222-225MHz (RX/TX)
66-88&136-174MHz (RX/TX)
66-88&400-480MHz (RX/TX)
FM: 76-108MHz (RX)
Memory Channels 16 channels
Frequency Stability ±2.5ppm
Operating Voltage 7.4V
Operating Temperature  -30℃~+60℃
Waterproof IP 55
Antenna Impedance 50Ω
Dimension 61x121x37.5(mm)
Weight 228g
Receiver
Sensitivity (12dB SINAD) 0.16µV
Squelch Rejection Sensitivity ≤0.8µV
Squelch Sensitivity ≤0.2µV
Audio Output power 500mW
Audio Distortion ≤5%
Audio Response (300-3000Hz)  +1 to -3dB
Co-channel Rejection ≥-8.0dB
Performance of Amplitude Limiter ≤3
Adjacent Channel Selection Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
Inter-modulation ≥65 dB
Resistance ≥84 dB
Spurious Radiation 9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm

Transmitter
Frequency Stability ±2.5PPM
RF Carrier Power UHF: 4W VHF: 5W
Effective Radiation Power (ERP) within pre-determined value ±7.5dB
Max. Frequency Deviation Channel Space: 25KHz  ±5KHz
Channel Space: 12.5KHz ±2.5KHz
Audio Modulation +3dB (pre-emphasis by 6dB between 0.3-3KHz)
Adjacent Channel Power Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
Spurious Radiation ≤-36dBm
Inter modulation Attenuation ≥40dB
Modulation Distortion ≤10%
Residual FM ≤-35dB
Residual AM ≤3%

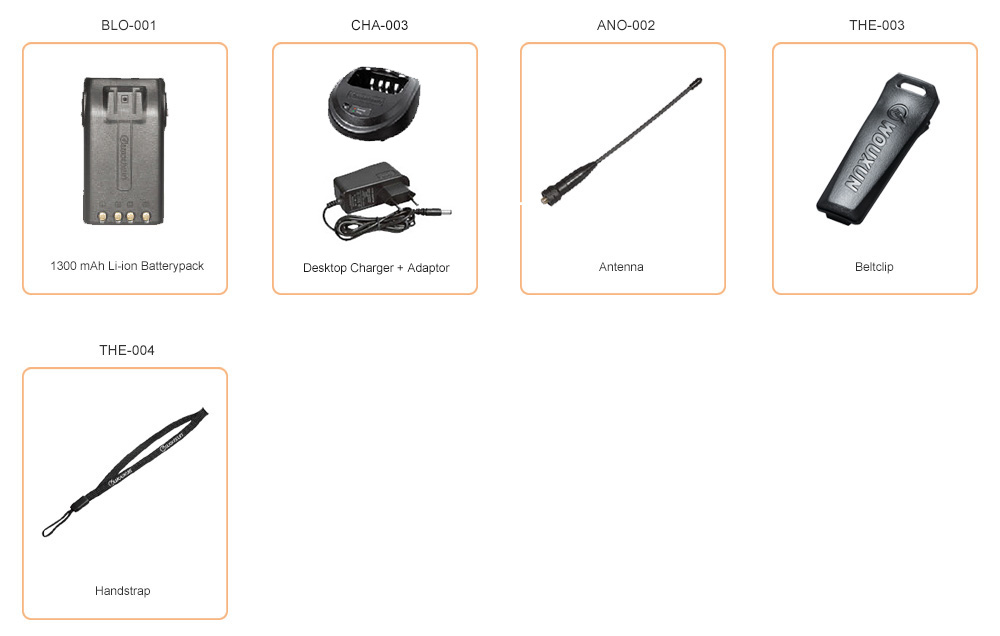

STANDARD ACCESSORY
uva1 accessory
