radio menu Shortcut Key Front Panel , Quad Bands Transmission , Car Mobile Radio KG-UV980P



  CLICK HERE CLOSE LIST radio list

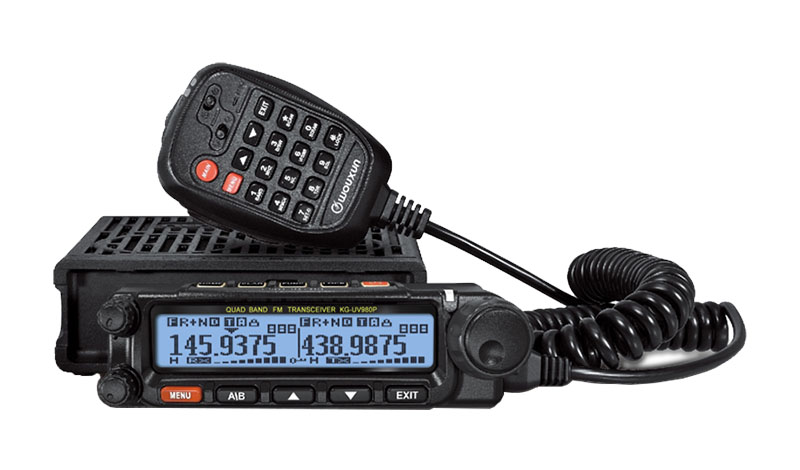

KG-UV980P

MAIN  FUNCTIONS
  • Dual Frequency Display, Dual Independant Operation System
  • Eight Bands for Receiving , Four Bands (Including SW) for Transmitting
  • Twin Band / Same Band Simultaneous Reception
  • 999 Memory Channels
  • Front Panel And Radio Body Flexible For Separation
  • QT/DOT Encoding And Decoding
  • QT/DOT Scanning
  • Non-standard CTCSS/DCS Setting Freely
  • Same Band Repeat on Two Combined Radios
  • Dual Track And Multi-way Loudspeakers
  • Hand Microphone DTMF With Loudspeakers
  • Caller ID Display
  • DTMF Encoding And Decoding
  • Multiple Scanning Ways
  • Group Calls, All Calls And Selective Calls
  • 8 Groups of Scrambler
  • Priority Channel Scanning
  • APO Power Management
  • Wide / Narrow Bandwidth Selectable
  • Chinese or English Voice Guide
  • Automatic Temperature Detection
  • Stun / Kill Function
  • Single Audio Pulse Frequency
  • Multiple Back Light Color Selectable
  • Scan Channel Adding / Deleting
  • Grouping Channel Scanning
  • Multiple Setting for Cooling Fan
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

   Suitable For Different Countries or Areas
   TX , FM
   26-29.995MHz / 50-53.995MHz
   136-174.995MHz / 400-479.995MHz
   RX , FM
   26-29.995MHz / 50-54.995MHz / 65-108MHz
   108-180.995MHz / 320-349.995MHz
   400-479.995MHz / 700-987.995MHz
   RX , AM
   108MHz-136MHz

   Step 5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz
   Channel Number 999
   Work Mode F2D/F3E
   Operating Temperature -20℃~+60℃
   Voltage 13.8VDC±15%
   Antenna Impedance 50Ω
   Weight 1438 g
   Size 140 x 44 x 207 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power transceiver≤3w , hand microphone≤1w
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Power ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Signal to Noise Ratio ≥40dB ≥36dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Output Power VHF(5W/10W/25W/50W)    UHF(5W/10W/25W/40W)


STANDARD  ACCESSORY
Send Accessory Inquiry
Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

MMO-003   SAO-001   SAO-002   MBO-001
microphone ...

panel ...

panel ...

bracket ...
Hand Microphone   Inclined Switchboard Panel   Flat Switchboard Panel   Mobile Mounting Bracket

RBO-001   PWO-002   SCO-002   SSO-001
bracket ...

cord ...

cable ...

screw ...
Remote Front Panel Bracket   Power Cord   Extension Cable   Screw Sets

FUO-001
fuse ...

Fuse , 32V-15A

OPTIONAL  ACCESSORY
SPO-002   PCO-003   ANO-035   ANO-016
power ...

cable ...

antenna ...

mount ...
Switching Power , 30A   USB Programming Cable   Antenna   Strong Magnetic Mount
