kg-699e

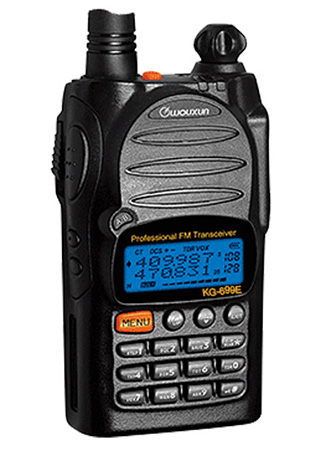

Two Way Radio KG-699E

MAIN FUNCTION
  • DTMF encoding and decoding
  • High/Low Power selection(VHF:5W/1W UHF: 4W/1W)
  • 105 groups DCS/ 50 groups CTCSS
  • Wide /narrow bandwidth selection (25KHz / 12.5KHz)
  • ANI(Caller ID)
  • PTT ID
  • TOT(Time-out Timer)
  • VOX Transmission(Level Adjustable)
  • Multi scan mode ( TO / CO / SE )
  • Busy channel lockout
  • Wire-clone function
  • All Calls,Group Calls and Selective Calls
  • FM Radio
  • IP55 waterproof
  • Mutil Step Frequency(5K / 6.25 K / 10K / 12.5K / 25K )
  • Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Frequency Ranges VHF:
66-88MHz / 136-174MHz /
245-246MHz
UHF:300-350MHz
400-470MHz / 450-520MHz
Channel Spacing Wide:25KHz / Narrow:12.5KHz
Output Power VHF:5W/1W UHF:4W/1W
Memory Channels 128
Voltage(DC) 7.4V
Working Temperature -30℃ ~ +60℃
Antenna Impedance 50Ω
Size 61 x 38 x 117 (mm)
Audio Distortion ≤5%
Modulation Type FM(F3E)
Max. Frequency Deviation ≤±5KHz
Adjacent Channel Selection ≥65 dB
Frequency Stability ±2.5ppm
Sensitivity (12dB SINAD) ≤0.2µV
Audio Output power ≥500mW
Spurious Radiation ≤-60dB
Weight 240 g
Waterproof IP55




STANDARD ACCESSORY

BLO-001   CHA-003
kg-699e battery

kg-699e charger
Battery , 1300mAh   Charger + Adaptor

ANO-003   OTH-003
kg-699e antenna

belt clip
Antenna   Belt Clip

OTH-005
hand strap

Hand Strap


OPTIONAL  ACCESSORY

BLO-007   CHA-007
battery

six-way charger
Battery , 2600mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-001   ELO-001
car charger

eliminator
Car Charger   Eliminator

ANO-041   ANO-006
antenna

antenna
Antenna , 38CM   Antenna

AAO-001   AAO-002
adaptor

adaptor
SL16 Antenna Adaptor   BNC Antenna Adaptor

BAO-001
case

"AA" Battery Case
