kg-801e

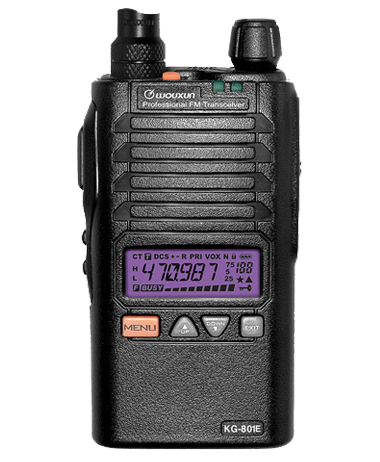

Two Way Radio KG-801E

MAIN FUNCTION
  • DTMF Encoding And Decoding
  • 5 Kinds of Backlights
  • 105 Groups DCS/ 50 Groups CTCSS
  • Wide / Narrow Bandwidth Selection (12.5 / 25KHz)
  • ANI(Caller ID)
  • PTT ID
  • TOT(Time-out Timer)
  • VOX Transmission(Level Adjustable)
  • Multi Scan Mode ( TO / CO / SE )
  • Busy Channel Lockout
  • Wire-clone Function
  • All Calls,Group Calls and Selective Calls
  • FM Radio
  • Setting Power on Message


TECHNICAL SPECIFICATION

Frequency Ranges PMR446MHz
Output Power 0.5W
Memory Channels 128
Voltage 7.4VDC
Working Temperature -30℃ ~ +60℃
Antenna Impedance 50Ω
Audio Distortion ≤5%
Modulation Type FM(F3E)
Max. Frequency Deviation ≤±5KHz
Adjacent Channel Selection ≥65 dB
Frequency Stability ±2.5PPM
Sensitivity (12dB SINAD) ≤0.2µV
Audio Output Power ≥500mW
Spurious Radiation ≤-60dB
Waterproof IP55




STANDARD ACCESSORY

BLO-004   CHA-003
kg-703e battery

kg-703e charger
Battery , 1700mAh   Charger + Adaptor

ANO-003   OTH-003
kg-703e antenna

belt clip
Antenna   Belt Clip

OTH-005
hand strap

Hand Strap


OPTIONAL  ACCESSORY

BLO-007   CHA-007
battery

six-way charger
Battery , 2600mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-001   ELO-001
car charger

eliminator
Car Charger   Eliminator

ANO-041   ANO-006
antenna

antenna
Antenna , 38CM   Antenna

AAO-001   AAO-002
adaptor

adaptor
SL16 Antenna Adaptor   BNC Antenna Adaptor

BAO-001
case

"AA" Battery Case
