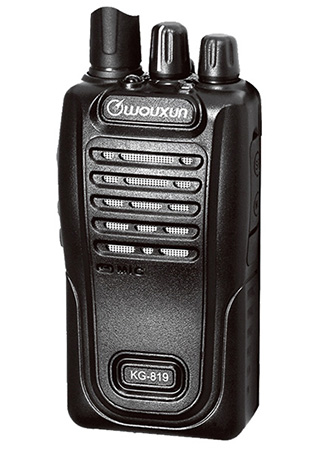

| Two Way Radio KG-819 |
| |
| MAIN FUNCTION |
- 1750Hz Tone
- DTMF encoding and decoding
- All calls, group calls and selective calls
- 105 groups DCS/50 groups CTCSS
- Distant alarm
- Voice prompt
- Wide/Narrow bandwidth selection
- Multi scan mode (TO/CO/SE)
- Call ringing
- VOX (level adjustable)
- Battery capacity prompt
- TOT (time-out timer)
- Busy channel lockout
- Wireclone function
- PC program
- Bright flashlight illumination function
- Superheterodyne Receiver Type
|
| |
TECHNICAL SPECIFICATION
| Frequency Ranges |
VHF：
66-88MHz / 136-174MHz /
245-250MHz / 216-280MHz
UHF：
400-470MHz / 350-390MHz /
400-480 / 420-520MHz
|
| Channel Spacing |
Wide:25KHz / Narrow:12.5KHz |
| Output Power |
VHF:5W/1W UHF:4W/1W |
| Memory Channels |
16 |
| Voltage(DC) |
7.4V |
| Working Temperature |
-30℃ ~ +60℃ |
| Antenna Impedance |
50Ω |
| Size |
57 x 36 x 116 (mm) |
| Audio Distortion |
≤5% |
| Modulation Type |
FM(F3E) |
| Max. Frequency Deviation |
≤±5KHz |
| Adjacent Channel Selection |
≥65 dB |
| Frequency Stability |
±2.5ppm |
| Sensitivity (12dB SINAD) |
≤0.2µV |
| Audio Output power |
≥500mW |
| Spurious Radiation |
≤-60dB |
| Weight |
210 g |
| Waterproof |
IP55 |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-003 |
|
CHA-005 |
|
|
|
| Battery , 1300mAh |
|
Charger + Adaptor |
| |
|
|
| ANO-005 |
|
OTH-003 |
|
|
|
| Antenna |
|
Belt Clip |
| |
|
|
| OTH-005 |
|
|
|
|
|
| Hand Strap |
|
|
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-006 |
|
CHA-008 |
|
|
|
| Battery , 1700mAh |
|
Six-way Charger |
| |
|
|
| LCO-003 |
|
PCO-009 |
|
|
|
| Leather Case |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| HEO-003 |
|
HEO-005 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| SMO-001 |
|
SMO-002 |
|
|
|
| Speaker |
|
Speaker |
| |
|
|
| CCO-001 |
|
ELO-002 |
|
|
|
| Car Charger |
|
Eliminator |
| |
|
|
| ANO-041 |
|
ANO-006 |
|
|
|
| Antenna , 38CM |
|
Antenna |
| |
|
|
| AAO-001 |
|
AAO-002 |
|
|
|
| SL16 Antenna Adaptor |
|
BNC Antenna Adaptor |
| |
|
|
| BAO-002 |
|
BAO-003 |
|
|
|
| "AA" Battery Case |
|
"AAA" Battery Case |
| |
|
|
|
| |
