kg-828

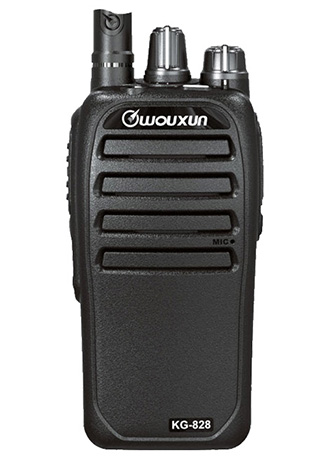

Two Way Radio KG-828

MAIN FUNCTION
  • VOX Function
  • CTCSS/DCS
  • Chinese and English Voice Guide
  • Wide /narrow bandwidth selection(12.5KHz/25KHz)
  • High / Middle / Low Output Power Selectable
  • High Battery Capacity , 3200mAh
  • Intellingent Charger (Bicolor Light)
  • Multi scan mode
  • Busy channel lockout
  • Low Voltage Prompt
  • Transmit Overtime Prompt
  • PC Programmable
  • Waterproof IP67   ( View IP67 Test Report )
  • Adding Channel Scanning


TECHNICAL SPECIFICATION

Frequency Ranges    66 - 88MHz or 136 - 174MHz
   400 - 480MHz
Channel Numbers 16
Openating Mode Co-channel or Dis-channel Simplex
Output Power UFH H:8W , M:4W , L:1W
Voltage(DC) 7.4V
Working Temperature -30℃ ~ +60℃
Modulation Type FM(F3E)
Max. Frequency Deviation ≤±5KHz
Frequency Stability ±5ppm
Sensitivity (12dB SINAD) ≤0.2µV
Audio Output power ≥500mW
Spurious Radiation < -60dB
WaterProof IP67
Weight 320 g
Size 132 x 62 x 37 (mm)




STANDARD ACCESSORY

BLO-011   CHA-012
kg-828 battery

kg-828 charger
Battery , 3200mAh   Charger

ANO-012   CHA-012
kg-828 antenna

kg-828 power adapter
Antenna   Power Supply Adaptor

OTH-005   OTH-001
hand strap

belt clip
Hand Strap   Belt Clip


OPTIONAL  ACCESSORY

BLO-016   CHA-027
battery

six-way charger
Battery , 2600mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-002   ELO-005
car charger

eliminator
Car Charger   Eliminator

ANO-038   ANO-012
antenna

antenna
Antenna   Antenna

AAO-001   AAO-002
adaptor

adaptor
SL16 Antenna Adaptor   BNC Antenna Adaptor
