kg-916

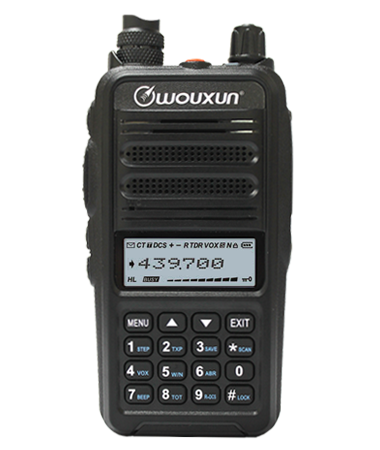

Handheld Two Way Radio KG-916

MAIN FUNCTION
  • Bandwidth Selectable
  • DTMF Encoding and Decoding
  • Begin and End Transmitting Beep Prompt
  • 105 Groups DCS , 50 Groups CTCSS
  • CTCSS Scan and DCS Scan
  • Voice Guide
  • VOX Transmission , Level Adjustable
  • Reverse Frequency Function
  • Multi Scan Mode (TO / CO / SE)
  • Channel Name Edit and Display
  • Battery Capacity Prompt
  • TOT (Time-out Timer)
  • Busy Channel Lockout
  • Wire-clone Function
  • Programmable by Computer
  • Superheterodyne Receiver Type


TECHNICAL  SPECIFICATION

Intergration
Frequency Range   Suitable For Different Countries
  VHF : 66-88 / 136-174 MHz
  UHF : 400-470 MHz
Memory Channels 256
Frequency Stability ±2.5 PPM
Operating Voltage 7.4 VDC
Operating Temperature -30℃~+60℃
Antenna Impedance 50Ω
Operating Way Simplex of Co-channel
or Dis-channel



Receiver
Sensitivity(12dB SINAD) 0.16µV
Squelch Rejection
Sensitivity
≤0.8µV
Squelch Sensitivity ≤0.2µV
Audio Output Power 500mW
Audio Distortion ≤5%
Audio Response (300-3000Hz) +1 to -3dB
Co-channel Rejection ≥-8.0dB
Performance of
Amplitude Limiter
≤3
Adjacent Channel Selection Channel Space: 25KHz ≥70 dB
Channel Space: 12.5KHz ≥60 dB
Inter-modulation ≥65 dB
Resistance ≥84 dB
Spurious Radiation 9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm



Transmitter
Frequency Stability ±2.5 PPM
RF Carrier Power UHF: 4W , VHF: 5W
Effective Radiation
Power
Power Changes Not Exceed
Preset Value ±7.5dB
Max. Frequency
Deviation
Channel Space: 25KHz ±5KHz Channel Space: 12.5KHz ±2.5KHz
Audio Modulation +3dB (pre-emphasis by 6dB
between 0.3-3KHz)
Adjacent Channel Power Channel Space: 25KHz ≥70 dB Channel Space: 12.5KHz ≥60 dB
Spurious Radiation ≤-30dBm
Inter-modulation Attenuation ≥40dB
Modulation Distortion ≤10%
Residual FM ≤-35dB
Residual AM ≤3%




STANDARD ACCESSORY

BLO-009   CHA-029
battery

charger
Battery , 2600mAh   Desktop Charger

ANO-012   OTH-003
antenna

belt clip
Antenna   Belt Clip

OTH-005
hand strap

Hand Strap


OPTIONAL  ACCESSORY

BLO-009   CHA-010
battery

six-way charger
Battery , 2600mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-001   ELO-003
car charger

eliminator
Car Charger   Eliminator

ANO-012   AAO-002
antenna

adaptor
Antenna   BNC Antenna Adaptor

AAO-001
adaptor

SL16 Antenna Adaptor
