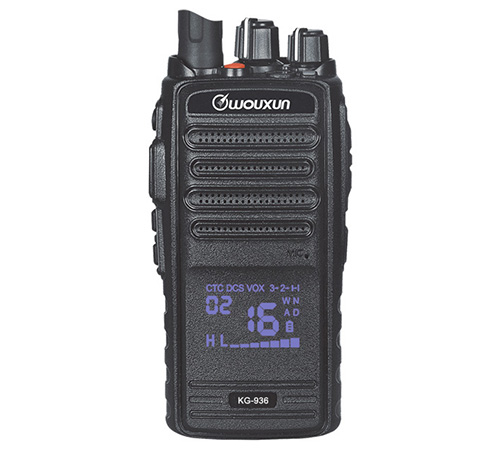

| Two Way Radio KG-936 |
| |
| RADIO FUNCTION |
- VOX Function
- CTCSS / DCS , NON-Standard is Editable
- Chinese And English Voice Guide
- Wide And Narrow Bandwidth ( 12.5 / 25 KHz )
- FM Brocast Radio
- Multi Scan Mode
- Battery Voltage Display
- CTCSS / DCS Intelligent Display
- Low Voltage Prompt
- Transmit Overtime Prompt
- Programmable By Computer
- Adding Channel Scanning
- Busy Channel Lockout
- Kenwood Connector
- Lamp
|
| |
TECHNICAL SPECIFICATION
| Frequency Ranges |
400 - 480MHz , 430-520MHz
136-174MHz , PMR446MHz |
| Channel Numbers |
256 （Rotate by 360°) |
| Openating Mode |
Co-Channel or Dis-Channel Simplex |
| Output Power |
Max 5 Watts |
| Voltage |
7.4 VDC |
| Working Temperature |
-30℃ ~ +60℃ |
| Modulation Type |
FM (F3E) |
Max. Frequency
Deviation |
≤ ±5KHz |
| Frequency Stability |
±5PPM |
| Sensitivity |
≤0.2µV (12dB SINAD) |
| Audio Output power |
≥500mW |
| Spurious Radiation |
< -60dB |
| Weight |
320 G |
| Dimension |
130 x 57 x 35 MM |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-033 |
|
WXUSB-C |
|
|
|
| Battery , 2200mAh |
|
USB-C Charging Kit |
| |
|
|
| OTH-001 |
|
ANO-012 |
|
|
|
| Belt Clip |
|
Antenna |
| |
|
|
| OTH-005 |
|
|
|
|
|
| Hand Strap |
|
|
| |
|
|
|
| |
| |
