kg-958

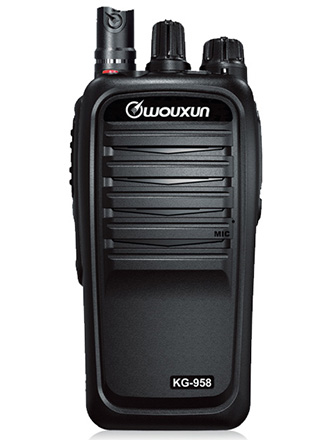

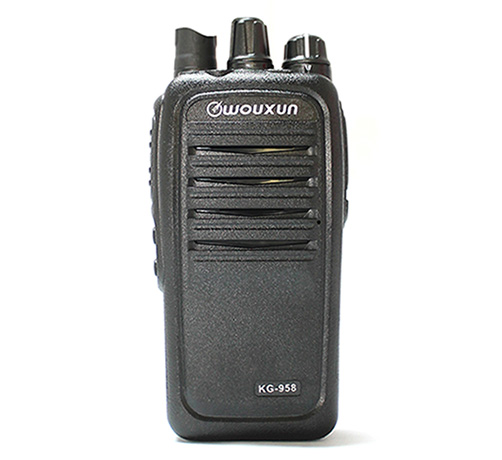

Radio Direct Charging , Wide Signal Coverage KG-958

MAIN FUNCTION
  • Editable fro non-standard tone(CTCSS/DCS)
  • DTMF encode and decode
  • Wide /narrow bandwidth selection(12.5KHz/25KHz)
  • High and stable output power(10Watts)
  • Inspection , monitor , stun and kill
  • 16 groups of banking , 256 memory channels
  • SOS and VOX Function
  • Emergency alarm
  • Single tone frequency 2100Hz / 1750Hz / 1450Hz / 1000Hz
  • Priority channel scan
  • Lamp
  • Scan Multi-definition , channel definition for scan
  • Radio direct charging
  • DIY extended interface
  • Waterproof IP67   ( View IP67 Test Report )
  • PTT-ID
  • Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Intergration
Frequency Range Suitable for Different Countries
UHF : 420-520MHz / 400-480MHz 400-470MHz / 350-390MHz
VHF : 66-88MHz / 136-174MHz
245-250MHz / 216-280MHz
Step 5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number 256
Work Mode F2D/F3E
Operating Temperature -20℃ ~ +55℃
Voltage 7.4 VDC
Antenna Impedance 50Ω
Size 62 x 37 x 132 MM
Weight 340 g



Transmitter
  Wide Narrow
Adjacent Channel Selectivity ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Max Frequency Deviation ±5KHz ±2.5KHz
Frequency Stability ±2.5PPM
Audio Distortion ≤5%



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥45dB
Audio Distortion ≤5%
Audio Power ≤500mW
Sensitivity UHF/VHF:0.25µV(12dB SINAD)




STANDARD ACCESSORY

BLO-011   CHA-012
kg-958 battery

kg-958 charger
Battery , 3200mAh   Charger

CHA-012   ANO-013
kg-958 power adapter

kg-958 antenna
Power Supply Adapter   Antenna

OTH-005   OTH-001
hand strap

belt clip
Hand Strap   Belt Clip


OPTIONAL  ACCESSORY

BLO-025   CHA-027
battery

six-way charger
Battery , 3200mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-002   ELO-005
car charger

eliminator
Car Charger   Eliminator

ANO-038   ANO-012
antenna

antenna
Antenna   Antenna

AAO-001   AAO-002
adaptor

adaptor
SL16 Antenna Adaptor   BNC Antenna Adaptor
