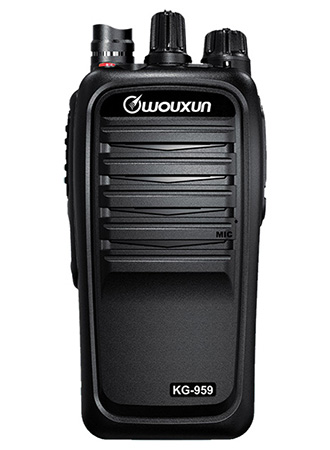

| Two Way Radio KG-959 |
| |
| MAIN FUNCTION |
- Non-Standard Tone(CTCSS/DCS)
- DTMF encode and decode
- Remote Stun , Kill Monitor , Inspection
- 16 groups of banking , 256 memory channels
- Emergency alarm
- Wide /narrow bandwidth selection(12.5KHz/25KHz)
- Scan Group
- Work Group
- Battery Save
- Radio Direct Charging
- DIY Extended Interface
- PTT-ID

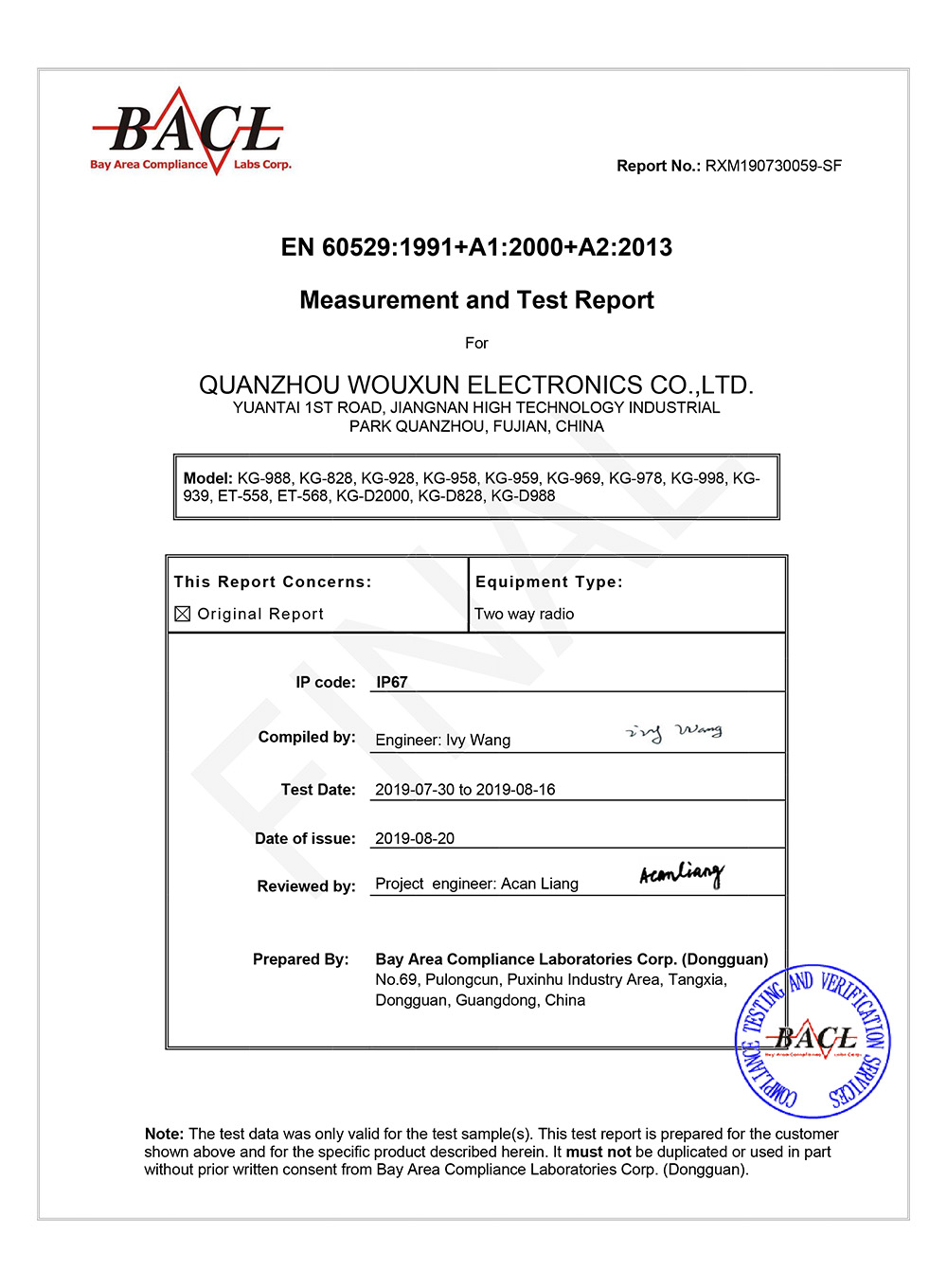

- Waterproof IP67 ( View IP67 Test Report )
- Transmit Overtime Timer
- Busy Channel Lockout
- Superheterodyne Receiver Type
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
Suitable for Different Countries
UHF
350-390MHz / 400-470MHz
400-480MHz / 420-520MHz
VHF
66-88MHz & 136-174MHz
245-250MHz & 216-280MHz |
| Step |
5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz |
| Channel Number |
256 |
| Work Mode |
F2D/F3E |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4 VDC |
| Antenna Impedance |
50Ω |
| Weight |
340 g |
| Size |
62 x 37 x 132 MM |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Audio Power |
≤500mW |
| Sensitivity |
UHF/VHF：0.25µV（12dB SINAD） |
| Transmitter |
| Adjacent Channel Power |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Max Frequency Deviation |
±5KHz |
±2.5KHz |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Frequency Stability |
±2.5PPM |
| Audio Distortion |
≤5% |
| Output Power |
4W / 1W , 0.5W(PMR) |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-016 |
|
CHA-020 |
|
|
|
| Battery , 2600mAh |
|
Charger |
| |
|
|
| CHA-020 |
|
ANO-012 |
|
|
|
| Power Supply Adapter |
|
Antenna |
| |
|
|
| OTH-005 |
|
OTH-001 |
|
|
|
| Hand Strap |
|
Belt Clip |
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-011 |
|
CHA-027 |
|
|
|
| Battery , 3200mAh |
|
Six-way Charger |
| |
|
|
| LCO-003 |
|
PCO-009 |
|
|
|
| Leather Case |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| HEO-003 |
|
HEO-005 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| SMO-001 |
|
SMO-002 |
|
|
|
| Speaker |
|
Speaker |
| |
|
|
| CCO-002 |
|
ELO-005 |
|
|
|
| Car Charger |
|
Eliminator |
| |
|
|
| ANO-038 |
|
ANO-012 |
|
|
|
| Antenna |
|
Antenna |
| |
|
|
| AAO-001 |
|
AAO-002 |
|
|
|
| SL16 Antenna Adaptor |
|
BNC Antenna Adaptor |
| |
|
|
|
| |
