kg-d3000(uv)

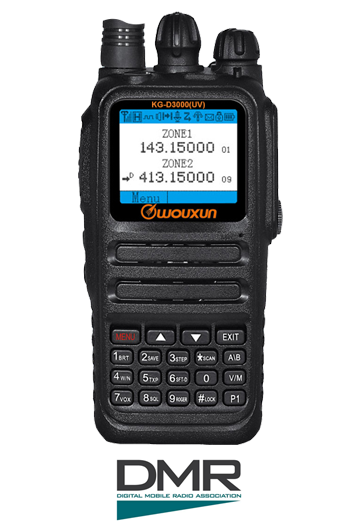

Color Screen , Digital and Analogue Radio KG-D3000(UV)

MAIN  FUNCTION
  • 3072 Channels
  • 160000 DMR Contacts
  • 255 Receiving Groups
  • 250 Zones
  • 16 Scan List
  • Radio ID
  • Radio TX Contacts
  • Duan Band and Dual Display
  • Radio Color Code
  • Support Frequency Mode
  • Program Key
  • Digital Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • One Touch Access / Talk Around
  • Radio Program Password
  • Menu Encryption or Menu Hide
  • Power Save Mode
  • Group Scan
  • Tail Elimination
  • Text Message
  • Radio Disable or Enable
  • Lone Work
  • ARTS Function
  • Flash Light
  • Call Alert
  • CTCSS Encoding and Decoding , Support Non Standard
  • Digital Channel Recording , Continuous Record 8 Hours
  • Play Recording File
  • Customerized Radio Interface
  • DTMF Encoding and Decoding
  • Transmit Time-out Alert
  • FM Radio
  • Fimware Upgradable


TECHNICAL  SPECIFICATION

Intergration
Frequency Range 136-174MHz , 400-520MHz
Channel Number 3072
Operating Temperature -20℃~+40℃
Antenna Resistance 50 Ω
Working Voltage 7.4 VDC
Weight 300 G
Size 64 x 41 x 130 MM



Transmitter
FM Modulation 12.5KHz : 11KOF3E ,
25KHz : 16KOF3E
4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data+Voice) : 7K60EXE
Adjancent Channel Power ≤-60dB
Frequency Stability ±1 PPM
Audio Distortion ≤5%
Vocoder Type AMBE+2TM
Audio Response +1dB~-3dB
Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
Bit Error Ratio ≤5%
Modulation Limit ±2.5KHz@12.5KHz
Output Power UHF(H : 4W , L : 1W)
VHF(H : 5W , L : 1W)



Receiver
Analog Receive Sensitivity 0.25µV@12dB SINAD
Digital Receive Sensitivity 0.25µV(BER:5%)
Adjacent Channel
Selectivity
≤60dB@12.5KHz
Audio Response +1dB~-3dB
Audio Distortion ≤5%
Audio Power 1W
Inter Modulation ≥65dB




STANDARD  ACCESSORY

BLO-016   CHA-025
battery

kg-d3000(uv) charger
Battery , 2600mAh   Charger

CHA-025   ANO-033
kg-d3000(uv) power adapter

antenna
Power Supply Adapter   Antenna

OTH-005   OTH-001
hand strap

belt clip
Hand Strap   Belt Clip
