kg-56

Dual PTT , UV Dual Band , Digital and Analogue

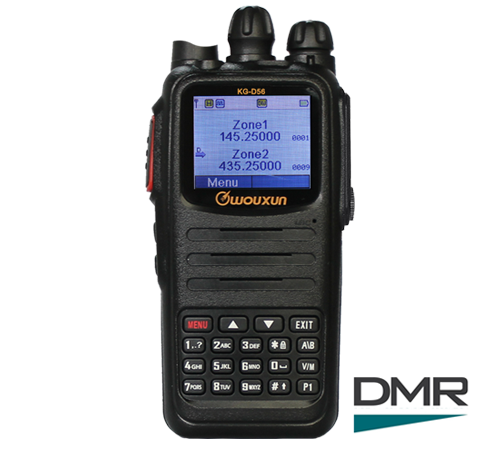

Two Way Radio KG-D56

MAIN  FUNCTION
  • Dual PTT
  • Indenpent ID For Each Channel
  • 3072 Channels
  • 160000 Contacts
  • 255 Receiving Groups
  • 250 Zones
  • 255 Scanning Groups
  • Radio ID
  • Radio TX Contacts
  • Duan Band and Dual Display
  • Radio Color Code
  • Support Frequency Mode
  • Program Key
  • Digital Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • One Touch Access / Talk Around
  • Radio Program Password
  • Menu Encryption or Menu Hide
  • Power Save Mode
  • Group Scan
  • Tail Elimination
  • Text Message
  • Radio Disable or Enable
  • Lone Work
  • ARTS Function
  • Flash Light
  • Call Alert
  • CTCSS Encoding and Decoding , Support Non Standard
  • Digital Channel Recording , Continuous Record 8 Hours
  • Play Recording File
  • Customerized Radio Interface
  • DTMF Encoding and Decoding
  • Transmit Time-out Alert
  • FM Radio
  • Fimware Upgradable


TECHNICAL  SPECIFICATION

Intergration
Frequency Range 136-174MHz , 400-520MHz
Channel Number 3072
Operating Temperature -20℃~+40℃
Antenna Resistance 50Ω
Working Voltage 7.4 VDC
Weight 300 g
Size 64 x 41 x 130 (mm)



Transmitter
FM Modulation 12.5KHz : 11KOF3E ,
25KHz : 16KOF3E
4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data+Voice) : 7K60EXE
Adjancent Channel Power ≤-60dB
Frequency Stability ±1 PPM
Audio Distortion ≤5%
Vocoder Type AMBE+2TM
Audio Response +1dB~-3dB
Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
Bit Error Ratio ≤5%
Modulation Limit ±2.5KHz@12.5KHz
Output Power UHF(H : 4W , L : 1W)
VHF(H : 5W , L : 1W)



Receiver
Analog Receive Sensitivity 0.25µV@12dB SINAD
Digital Receive Sensitivity 0.25µV(BER:5%)
Adjacent Channel
Selectivity
≤60dB@12.5KHz
Audio Response +1dB~-3dB
Audio Distortion ≤5%
Audio Power 1W
Inter Modulation ≥65dB




Please Click The Icon to Select The Items You Want
And Send The Inquiry to WOUXUN For Offers

STANDARD  ACCESSORY

BLO-016   CHA-025
battery ...

charger ...
Battery , 2600mAh   Desktop Charger

CHA-025   ANO-033
adapter ...

antenna ...
Power Supply Adapter   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...
Hand Strap   Belt Clip


OPTIONAL  ACCESSORY

BLO-011   CHA-027
battery ...

six-way charger ...
Battery , 3200mAh   Six-way Charger

LCO-003   PCO-008
leather case ...

usb cable ...
Leather Case   USB Cable

HEO-001   HEO-002
headset ...

earphone ...
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset ...

earphone ...
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker ...

speaker ...
Speaker   Speaker

CCO-002   ELO-005
car charger ...

eliminator ...
Car Charger   Eliminator

ANO-012   ANO-038
antenna ...

antenna ...
Antenna   Antenna

AAO-001   AAO-002
adaptor ...

adaptor ...
SL16 Antenna Adaptor   BNC Antenna Adaptor
