kg-d88

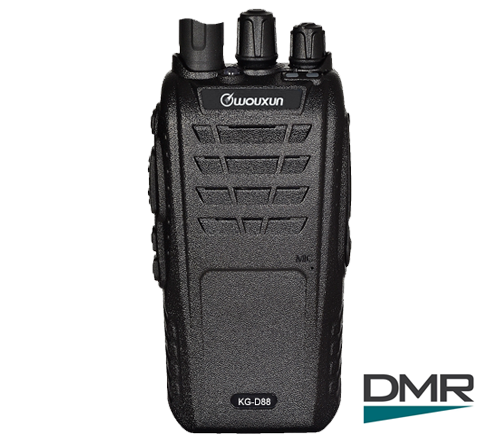

Digital And Analogue Two Way Radio KG-D88

MAIN  FUNCTION


Superior Voice
With The Adoption of The AGC Technology in
Combination With The Application of Narrowband
Codec And Digital Error Correction Technologies,
The KG-D88 Radios Are Capable of Ensuring Your
Voice is Clear And Crisp Even in Noisy Environments
or At The Edge of The Coverage Area

Higher Spectrum Efficiency And High
Channel Capacity

The TDMA Technology Allows Twice The Channels
Based on The Same Spectrum Resource , This
Relieves The Stress of Increasing Shortage in
Spectrum Resource

Secure Communication
Besides The Encryption Inherent to Digital Technology,
The KG-D88 Radios Provide Enhanced Encryption
Capabilities. This Process Includes End-to-End
Encryption And Over-the-air Encryption

  • 3072 Channel , 1024 Contacts , 255 Receiving Group
  • 250 Areas , 16 Scan List
  • Program Key
  • Digit Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • One Touch Relay / Talkaround
  • Transmit Time-out Alert
  • FM Radio
  • Firmware Upgrade
  • Radio Program Password
  • Power Save Mode
  • Tail Elimination
  • Lone Worker
  • Radio Disable or Enable
  • ARTS
  • Detection
  • Call Alert
  • Flashlight
  • CTCSS Encoding And Decoding , Support Non-standard
  • DTMF Encoding and Decoding


TECHNICAL  SPECIFICATION

Intergration
Frequency Range 136-174MHz , 400-480MHz
PMR446MHz
Channel Number 3072
Operating Temperature -20℃~+40℃
Antenna Resistance 50Ω
Working Voltage 7.4 VDC



Transmitter
FM Modulation 12.5KHz : 11KOF3E ,
25KHz : 16KOF3E
4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data) : 7K60EXE
Adjancent Channel Power ≤-60dB
Band Width Digital=12.5KHz , Analogue=12.5/25.0KHz PMR=12.5KHz
Frequency Stability ±1 PPM
Audio Distortion ≤5%
Vocoder Type AMBE+2TM
Audio Response +1dB~-3dB
Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
Bit Error Ratio ≤5%
Modulation Limit ±2.5KHz@12.5KHz
Output Power UHF(H : 4W , L : 1W)
PMR(0.5W)



Receiver
Analog Receive Sensitivity 0.25µV@12dB SINAD
Digital Receive Sensitivity 0.25µV(BER:5%)
Adjacent Channel
Selectivity
≤60dB@12.5KHz
Audio Response +1dB~-3dB
Audio Distortion ≤5%
Audio Power 1W
Inter Modulation ≥65dB




STANDARD  ACCESSORY

BLO-009   CHA-009
battery

charger
Battery , 2600mAh   Charger

ANO-033   OTH-001
antenna

belt clip
Antenna   Belt Clip

OTH-005
hand strap

Hand Strap


OPTIONAL  ACCESSORY

BLO-009   CHA-010
battery

six-way charger
Battery , 2600mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-001   ELO-003
car charger

eliminator
Car Charger   Eliminator

ANO-011   AAO-002
antenna

adaptor
Antenna   BNC Antenna Adaptor

AAO-001
adaptor

SL16 Antenna Adaptor
