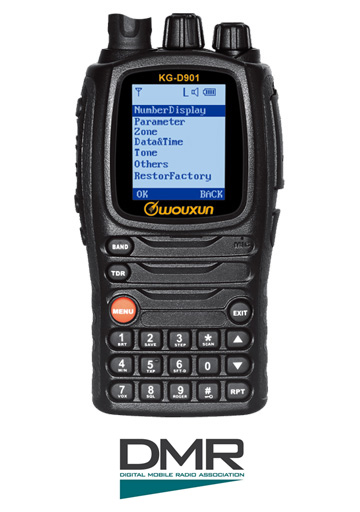

kg-d901

Call Recording , Digital and Analogue KG-D901

MAIN FUNCTION
  • English Voice Guide
  • Power Save
  • VOX Function
  • Transmit Overtime Forbidden
  • Inner Microphone Gain
  • Low Voltage Voice Prompt
  • SOS Alarm
  • ANI ID
  • Scan Group Setting
  • Scan Channel Selection
  • Digital Encryption
  • LED Flashlight
  • Multi-Function Program for Sidekeys
  • One Key Switch Digital / Analogue Mode
  • One Key Switch High / Low Power
  • PTT ID
  • Contact Edit
  • Remote Control , Remote Monitor
  • MSG Send and Receive
  • Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Intergration
Frequency Range 400-470MHz
Channel Spacing Digital : 12.5KHz
Channel Number 1000
Standard Package 2000mAh , Lithium-ion
Working Temperature -20℃~+50℃
Storage Temperature -40℃~+80℃
Working Voltage 7.4 VDC
Working Currency < 1300mA
Weight 261 g
Size 65 x 33 x 124 (mm)



Transmitter
Transmission Power ≤5W
FM Noise 40dB@12.5KHz
Transmission Spurious -36dBm@<1GHz
-30dBm@>1GHz
Adjacent Power -60dB@12.5KHz
Bandwidth Limit 2.5KHz@12.5KHz
Spare Time Slot Power -57dBm
Modulation Characteristics +1dB~-3dB
Digital Transmission Bit Error Rate ≤3%
Output Power ≤5W
4FSK Digital Modulation Method 12.5KHz(data only):7K60FXD 12.5KHz(data+voice):7K60FXE



Receiver
Frequency Stability ±2.5ppm
Inter-modulation 65dB
Co-channel Rejection -8dB@12.5KHz
Spurious Inhibition

-57dBm@<1GHz
-47dBm@>1GHz

Block 84dB
Adjacent Channel Selectivity 60dB@12.5KHz
Modulation Characteristics +1dB~-3dB
Spurious Response ≥70dB
Regulated Audio Power 1W
Digital Sensitivity 0.3µV / -117.4dBm(BER 5%)
0.7µV / -110dBm(BER 1%)




STANDARD  ACCESSORY

CHA-011   CHA-011
kg-d901 charger

kg-d901 power adapter
Charger   Power Supply Adapter

BLO-010   ANO-014
kg-d901 battery

antenna
Battery , 2000mAh   Antenna , 400-470MHz

OTH-005   OTH-001
hand strap

belt clip
Hand Strap   Belt Clip


OPTIONAL  ACCESSORY

BLO-012   CHA-013
battery

six-way charger
Battery , 3200mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-001   ELO-004
car charger

eliminator
Car Charger   Eliminator

ANO-038   ANO-006
antenna

antenna
Antenna   Antenna

AAO-001   AAO-002
adaptor

adaptor
SL16 Antenna Adaptor   BNC Antenna Adaptor
