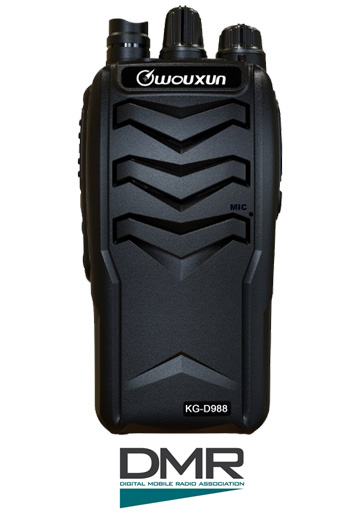

Program Key , Digital And Analogue Radio KG-D988

MAIN FUNCTION
  • 3072 Channel , 1024 Contacts , 255 Receiving Group
  • 250 Areas , 16 Scan List
  • UHF And VHF
  • Program Key
  • Digit Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • One Touch Relay / Talkaround
  • Transmit Time-out Alert
  • FM Radio
  • Radio Program Password
  • Power Save Mode
  • Tail Elimination
  • Lone Worker
  • Radio Disable or Enable
  • ARTS
  • Detection
  • Call Alert
  • Waterproof IP67   ( View IP67 Test Report )
  • Flashlight
  • CTCSS Encoding And Decoding , Support Non-standard
  • DTMF Encoding and Decoding
  • Firmware Upgrade


TECHNICAL SPECIFICATION

Intergration
Frequency Range 136-174MHz , 400-520MHz
Channel Number 3072
Operating Temperature -20℃~+40℃
Antenna Resistance 50Ω
Working Voltage 7.4 VDC
Weight 300 g
Size 64 x 41 x 130 (mm)



Transmitter
FM Modulation 12.5KHz : 11KOF3E ,
25KHz : 16KOF3E
4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data) : 7K60EXE
Adjancent Channel Power ≤-60dB
Frequency Stability ±1 PPM
Audio Distortion ≤5%
Vocoder Type AMBE+2TM
Audio Response +1dB~-3dB
Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
Bit Error Ratio ≤5%
Modulation Limit ±2.5KHz@12.5KHz
Output Power UHF(H : 4W , L : 1W)
VHF(H : 5W , L : 1W)



Receiver
Analog Receive Sensitivity 0.25µV@12dB SINAD
Digital Receive Sensitivity 0.25µV(BER:5%)
Adjacent Channel
Selectivity
≤60dB@12.5KHz
Audio Response +1dB~-3dB
Audio Distortion ≤5%
Audio Power 1W
Inter Modulation ≥65dB




STANDARD ACCESSORY

BLO-016   CHA-012
battery

charger
Battery , 2600mAh   Charger

CHA-012   ANO-033
power adaptor

antenna
Power Supply Adaptor   Anatenna

OTH-005   OTH-001
hand strap

belt clip
Hand Strap   Belt Clip


OPTIONAL  ACCESSORY

BLO-011   CHA-027
battery

six-way charger
Battery , 3200mAh   Six-way Charger

LCO-003   PCO-008
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-002   ELO-005
car charger

eliminator
Car Charger   Eliminator

ANO-038   ANO-012
antenna

antenna
Antenna   Antenna

AAO-001   AAO-002
adaptor

adaptor
SL16 Antenna Adaptor   BNC Antenna Adaptor
