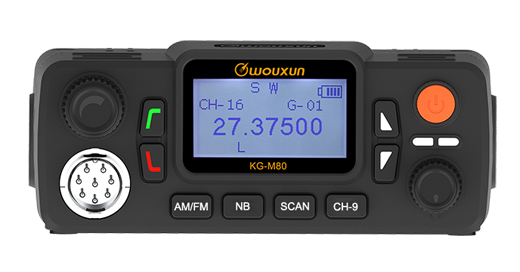

| CB Car Mobile Radio KG-M80
|
| |
| MAIN FUNCTION |
- Big LCD Displays Frequency and All Kinds of Information
- Flexible Menu Function and PC Program Software
- SQ , ASQ Function (FM and AM Mode Only)
- RF PWR Adjustment
- SCAN Function
- Programmable RB Function
- Offset Frequency Function
- +10KHZ Function
- EMG Channel Function
- SWR Protect
- Power Supply Voltage Protection
- Key-Lock Function
- Model Name Customized Function
- CTCSS / DCS Code(Optional)
- TOT Function
|
| |
TECHNICAL SPECIFICATION
| General |
| Audio Power |
≤500 mW |
| Operating Temperature |
-20 ℃～+40 ℃ |
| Voltage |
13.8 VDC |
| Setp |
100Hz/1KHz/10KHz/100KHz/1MKHz |
| Frequency Range |
26-27 MHz |
| Memory Channels |
999 |
| Mode |
F2D / F3E |
| Antenna Impedance |
50 Ω |
| Analogue Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤ 70dB |
≤ 60dB |
| Inter-Modulation |
≤ 65dB |
≤ 65dB |
| Spurious Response |
≤ 70dB |
≤ 70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Squelch Sensitivity |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Output Power |
25W |
| Analogue Receiver |
| |
Wide |
Narrow |
| Modulation |
16K F3E |
11K F3E |
| Effective Radiation Power |
≥70dB |
≥60dB |
| Spurious Response |
≥60dB |
≥60dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Max Offset |
±5 KHZ |
±2.5 KHZ |
| Frequency Stability |
±2.5 PPM |
| Audio Distortion |
≤5% |
|
| |
| |
