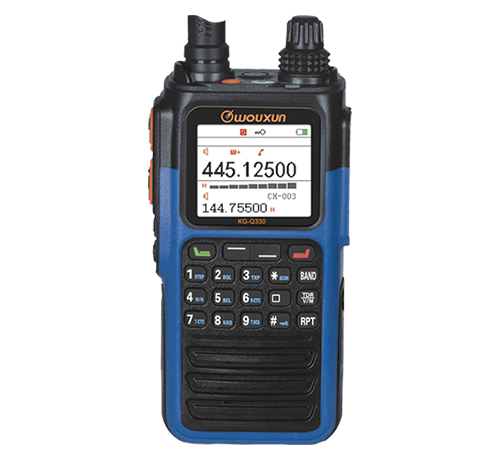

| UV Dual Bands Two Way Radio KG-Q330 |
| |
| MAIN FUNCTION |
- Busy Channel Lockout
- CTCSS / DCS Programmable
- Scan Group
- Call Code
- Scrambler
- Compander
- AM Mode SW
- Battery Save Mode
- Transmit Timeout Timer
- Transmit Timeout Alert
- Customerize-Made Software Supported
- Multi Keys Options
- Priority Channel
- Repeater PTT
- Theme
- GPS (optional )
- Time Zone
- Two Menu System
- Waterproof IP67 (Optional)
- FM Radio
- USB-C Charging
|
| |
TECHNICAL SPECIFICATION
| Frequency |
136-174 & 400-480 MHz |
| Frequency Step |
2.5 / 5.0 / 6.25 / 8.33 / 10 / 12.5
25 / 50 / 100 KHz |
| Channel Number |
999 |
| Work Mode |
F2D / F3E |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4 VDC |
| Antenna Impedance |
50 Ω |
| Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Max Frequency Deviation |
±5.0KHz |
±2.5KHz |
| Frequency Stability |
±2.5 PPM |
| Audio Distortion |
≤5% |
| Output Power |
UHF: 5W / 2W / 1W
VHF: 4W / 2W / 1W |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Power |
≤500mW |
| Audio Distortion |
≤5% |
| Sensitivity |
UHF/VHF：119dBm SINAD 13dB |
|
| |
| STANDARD ACCESSORY |
| |
| CHA-035B |
|
CHA-035A |
|
|
|
| Power Supply Adaptor |
|
Desktop Charger |
| |
|
|
| ANO-056 |
|
ANO-057 |
|
|
|
| Short Antenna |
|
Long Antenna |
| |
|
|
| OTH-005 |
|
OTH-001 |
|
|
|
| Hand Strap |
|
Belt Clip |
| |
|
|
| BLO-032 |
|
|
|
|
|
| Li-ion Battery Pack |
|
|
|
| |
