kg-q332

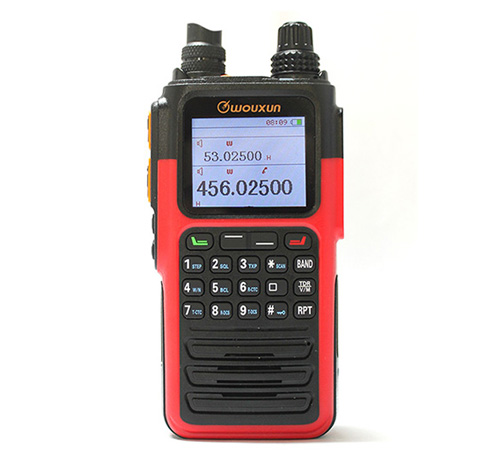

Multi Bands Two Way Radio KG-Q332

MAIN  FUNCTION
  • Type-C USB Charge Directly
  • Step
  • Squelch
  • TX POWER
  • Bandwidth
  • Busy Channel Lockout
  • RX CTCSS
  • TX CTCSS
  • RX DCS
  • TX DCS
  • Work Mode
  • Offset
  • Shift
  • Channel Name Edit
  • Channel Adding
  • Channel Delete
  • Mute Mode
  • Scan Tone
  • Scan Adding
  • Scan Group
  • Scan Mode
  • Call Code
  • Scrambler
  • Compander
  • AM Mode SW
  • Battery Save Mode
  • Roger
  • Transmit Timeout Timer
  • Beep
  • Transmit Timeout Alert
  • PF1 Options
  • PF2- Short Press Options
  • PF2- Long Press Options
  • PF3- Short Press Options
  • PF3- Long Press Options
  • Backlight
  • Timer
  • StartUp Message
  • ANI CODE Edit
  • Side Tone
  • Auto Lockout
  • Priority Channel
  • Priority Channel Switch
  • Repeater Switch
  • Repeater Speaker
  • Repeater PTT
  • Single Tone Impulse Frequency
  • PTT ID Transmit Delay
  • PTT ID Transmit Modes
  • Ring Time
  • Repeater Tone
  • Scanning Tone Save Modes
  • Mute Mode in Sub Area
  • Reset Scanning Tone Save Modes
  • Backlight in Activate mode
  • Backlight in Standby mode
  • FM Radio mode
  • Theme
  • Time
  • Time Zone
  • Language
  • Scan Mode
  • Scan Tones SW
  • Top Key Options
  • VOX
  • Voice Guide


TECHNICAL SPECIFICATION

Frequency TX 50-54 & 222-225 MHz
136-174 & 400-480 MHz
Frequency RX 50-54(FM) & 76-108(FM) MHz
108-136(Air) & 136-174(FM) MHz
216-260(FM) & 320-400(FM) MHz
400-480(FM) & 714-999(FM) MHz
Frequency Step 2.5 / 5.0 / 6.25 / 8.33 / 10 / 12.5
25 / 50 / 100 KHz
Channel Number 999
Work Mode F2D / F3E
Operating Temperature -20℃~+40℃
Voltage 7.4 VDC
Antenna Impedance 50 Ω



Transmitter
  Wide Narrow
Adjacent Channel Selectivity ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Max Frequency Deviation ±5.0KHz ±2.5KHz
Frequency Stability ±2.5 PPM
Audio Distortion ≤5%
Output Power UHF: 4W / 2W / 1W
VHF: 5W / 2W / 1W



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Power ≤500mW
Audio Distortion ≤5%
Sensitivity UHF/VHF:119dBm SINAD 13dB




STANDARD ACCESSORY

CHA-035B   CHA-035A
adaptor

charger
Power Supply Adaptor   Desktop Charger

ANO-056   ANO-057
antenna

antenna
Short Antenna   Long Antenna

OTH-005   OTH-001
hand-strap

belt-clip
Hand Strap   Belt Clip

BLO-032
battery

Li-ion Battery Pack
