kg-t56

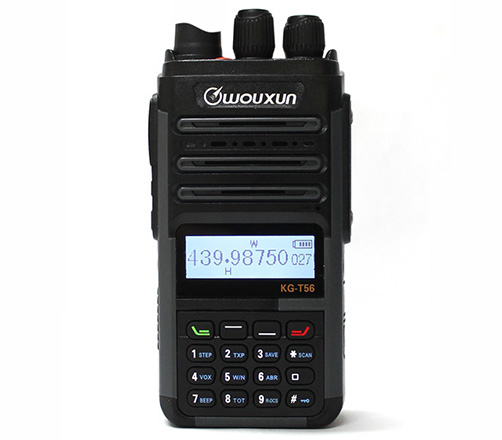

Two Way Radio KG-T56

MAIN  FUNCTION
  • Bandwidth Selectable
  • DTMF Encoding and Decoding
  • Begin and End Transmitting Beep Prompt
  • 105 Groups DCS , 50 Groups CTCSS
  • CTCSS Scan and DCS Scan
  • Voice Guide
  • VOX Transmission , Level Adjustable
  • Reverse Frequency Function
  • Multi Scan Mode (TO / CO / SE)
  • Displaying Mode : Frequency/Channel/Channel Name
  • Channel Name Edit and Display
  • Battery Capacity Prompt
  • TOT (Time-out Timer)
  • Busy Channel Lockout
  • Keypad Lock (Auto / Manual)
  • Waterproof IP67 (Optional)
  • Wire-clone Function
  • Programmable by Computer
  • USB Type-C Built Into The Radio For Charging


TECHNICAL  SPECIFICATION

Intergration
Frequency Range   Suitable For Different Countries
  VHF : 66-88 / 136-174 MHz
  UHF : 400-470 MHz
Memory Channels 256
Frequency Stability ±2.5 PPM
Operating Voltage 7.4 VDC
Operating Temperature -30℃~+60℃
Waterproof IP67
Antenna Impedance 50Ω
Operating Way Simplex of Co-channel
or Dis-channel



Receiver
Sensitivity(12dB SINAD) 0.16µV
Squelch Rejection
Sensitivity
≤0.8µV
Squelch Sensitivity ≤0.2µV
Audio Output Power 500mW
Audio Distortion ≤5%
Audio Response (300-3000Hz) +1 to -3dB
Co-channel Rejection ≥-8.0dB
Performance of
Amplitude Limiter
≤3
Adjacent Channel Selection Channel Space: 25KHz ≥70 dB
Channel Space: 12.5KHz ≥60 dB
Inter-modulation ≥65 dB
Resistance ≥84 dB
Spurious Radiation 9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm



Transmitter
Frequency Stability ±2.5 PPM
RF Carrier Power UHF: 4W , VHF: 5W
Effective Radiation
Power
Power Changes Not Exceed
Preset Value ±7.5dB
Max. Frequency
Deviation
Channel Space: 25KHz ±5KHz Channel Space: 12.5KHz ±2.5KHz
Audio Modulation +3dB (pre-emphasis by 6dB
between 0.3-3KHz)
Adjacent Channel Power Channel Space: 25KHz ≥70 dB Channel Space: 12.5KHz ≥60 dB
Spurious Radiation ≤-30dBm
Inter-modulation Attenuation ≥40dB
Modulation Distortion ≤10%
Residual FM ≤-35dB
Residual AM ≤3%




STANDARD  ACCESSORY

BLO-021   OTH-005
battery

hand-strap
Li-ion Battery Pack   Hand Strap

ANO-012   OTH-001
antenna

belt-clip
Antenna   Belt Clip

CHA-034   CHA-034
charger

adaptor
Desktop Charger   Power Supply Adaptor
