kg-uv10w

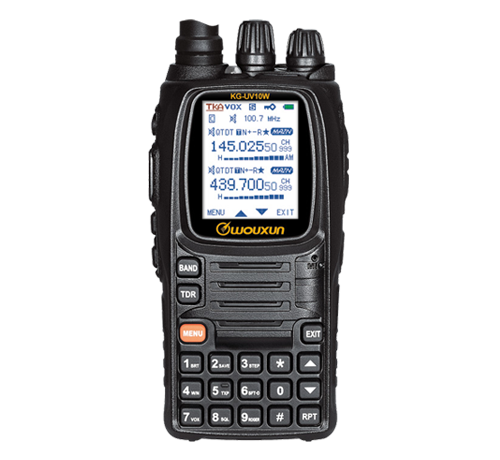

UV Dual Bands Two Way Radio KG-UV10W

MAIN  FUNCTION
  • Cross Band Repeater
  • Large Color Screen
  • Completely Turn Off Display Screen Background Light
  • Completely Trun Off Flickering Indicator Light
  • Dual Receiving
  • Duplex Work on A&B Areas
  • RX on The Same / Different Bands of A&B Areas Simultaneously
  • Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
  • Channel Groups Scanning
  • Memory Channels 999
  • QT / DQT Encoding / Decoding , QT / DQT Scan
  • Non-Standard CTCSS Can be Set Arbitrarily
  • VOX and SOS Function
  • Reverse Frequency
  • Mplitude Frequency PTT Settings
  • Incoming Message Display Caller ID Display
  • DTMF Encoding and Decoding
  • All Calls , Group Calls And Selective Calls
  • PriorRemote Alarmity Scan Function
  • Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
  • Chinese or English Voice Guide
  • Chinese or English Screen Display
  • English Channel Name Edit
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency 1000/1450/1750/2100Hz
  • Stopwatch
  • Multi Definition for Sidekeys


TECHNICAL SPECIFICATION

Frequency Range Suitable For Different Countries
136-174MHz & 400-480MHz
Frequency Step 2.5/5/6.25/10/12.5/25/50/100 KHz
Channel Number 999
Work Mode F2D / F3E
Operating Temperature -20℃~+40℃
Voltage 7.4 VDC
Antenna Impedance 50 Ω
Weight 490 G
Dimension 125 x 62 x 33 MM



Transmitter
  Wide Narrow
Adjacent Channel Selectivity ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Max Frequency Deviation ±5.0KHz ±2.5KHz
Frequency Stability ±2.5 PPM
Audio Distortion ≤5%
Output Power UHF: 8W / 5W / 1W
VHF: 10W / 7W / 1W



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Power ≤500mW
Audio Distortion ≤5%
Sensitivity UHF/VHF:119dBm SINAD 13dB




STANDARD ACCESSORY

BLO-010   CHA-011
battery

charger
Battery , 2600mAh   Desktop Charger

ANO-014   CHA-011
antenna

adaptor
Antenna   Power Supply Adaptor

OTH-005   OTH-001
hand-strap

belt-clip
Hand Strap   Belt Clip
