kg-uv2q

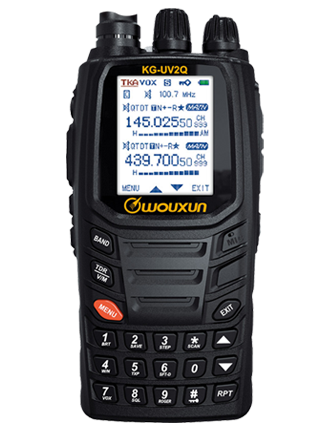

UV Dual Band , Cross Band Repeater , KG-UV2Q

MAIN  FUNCTION
  • Large Color Screen
  • Cross Band Repeater
  • DTMF Encoding and Decoding
  • All Calls , Group Calls , Selective Calls
  • Remote Alarm
  • Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
  • Chinese or English Voice Guide
  • Chinese or English Screen Display
  • English Channel Name Edit
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100 Hz
  • Non-Standard CTCSS
  • VOX and SOS function
  • Completely Turn Off Display Screen Background Light
  • Completely Trun Off Flickering Indicator Light
  • Duplex Work on A&B Areas ( TX on One Area While
    RX on The Other Area Simultaneously )
  • RX on The Same / Different Bands of A&B Areas Simultaneously
  • Simultaneously Scanning on Twin Band , Scanning
    on Limiting Frequency
  • Channel Groups Scanning
  • QT/DQT Encoding / Decoding , QT/DQT Scan
  • VOX and SOS function
  • Multi Definition for Sidekeys
  • Reverse Frequency
  • Mplitude Frequency PTT Settings
  • Stopwatch


TECHNICAL  SPECIFICATION

Intergration
Frequency Range    Suitable for Different Countries
   TX , FM
   136-174MHZ , 400-512MHZ
   RX , FM
   76-108MHZ
   108-136MHZ (Air Ground)
   136-180MHZ , 230-250MHZ
   350-400MHZ , 400-512MHZ
   700-985MHZ
Frequency Step 2.5 / 5 / 6.25 / 10 / 12.5 / 25 /
50 / 100 KHz
Channel Number 999
Work Mode F2D / F3E
Operating Temperature -20 ℃~+40 ℃
Voltage 7.4 VDC
Antenna Impedance 50 Ω



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤ 5%
Audio Power ≤500 mW
Sensitivity 108-136MHz -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB 230-250MHz -116.0dbm SINAD 13dB 350-400MHz -119.0dbm SINAD 13dB 400-512MHz -119.0dbm SINAD 13dB 700-986MHz -96.0dbm SINAD 12dB



Transmitter
Adjacent Channel Power ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Max Frequency Deviation ±5 KHz ±2.5 KHz
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Frequency Stability ±2.5 PPM
Audio Distortion ≤ 5%
Output Power UHF: 8W / 5W / 1W
VHF: 10W / 7W / 1W




STANDARD  ACCESSORY

BLO-012   CHA-011
battery

charger
Battery , 3200mAh   Charger

CHA-011   OTH-005
power adapter

hand strap
Power Supply Adapter   Hand Strap

ANO-014   OTH-001
antenna

belt clip
Antenna   Belt Clip
