kg-uv66

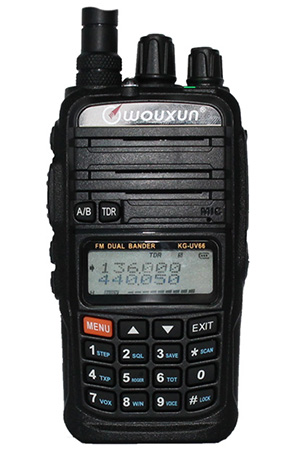

Dual Bands , 5-Tones , Two Way Radio KG-UV66

MAIN FUNCTION
  • Dual band , dual frequency , dual reception , dual display
  • Working Mode :U-V,V-U,V-V,U-U can be set freely
  • DTMF Encoding Function
  • CTCSS/DCS Scan(Digital 107groups /Analog 50 groups)
  • TX and RX can set freely, VHF for TX while UHF for RX, OR UHF for TX while VHF for RX
  • Digital FM Radio(76-108MHz)
  • VOX Transmission
  • Memory channels 199
  • Non-Standard CTCSS/DCS
  • Multi definition for sidekeys
  • Bandwidth Selection (25KHz/12.5KHz)
  • Channel name edit and display
  • Multi-scanning and offset function
  • Bright Flashlight Illumination
  • 8 groups of scrambler
  • 5-Tones


TECHNICAL SPECIFICATION

Intergration
Frequency Range Suitable for Different Countries
Step 5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number 999
Work Mode F2D/F3E
Operating Temperature -20℃~+40℃
Voltage 7.4 VDC
Antenna Impedance 50Ω
Weight 280 g



Transmitter
  Wide Narrow
Adjacent Channel Selectivity ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Max Frequency Deviation ±5KHz ±2.5KHz
Frequency Stability ±2.5PPM
Audio Distortion ≤5%
Output Power UHF H:4W , L:1W VHF H:5W , L:1W



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥45dB
Audio Distortion ≤5%
Audio Power ≤500mW
Sensitivity UHF/VHF:0.25µV(12dB SINAD)




STANDARD ACCESSORY

BLO-006   CHA-009
kg-uv66 battery

kg-uv66 charger
Battery , 1700mAh   Charger

ANO-011   OTH-003
antenna

belt clip
Antenna   Belt Clip

OTH-005
hand strap

Hand Strap


OPTIONAL  ACCESSORY

BLO-009   CHA-010
battery

six-way charger
Battery , 2600mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-001   ELO-003
car charger

eliminator
Car Charger   Eliminator

ANO-011   AAO-002
antenna

adaptor
Antenna   BNC Antenna Adaptor

AAO-001
adaptor

SL16 Antenna Adaptor
