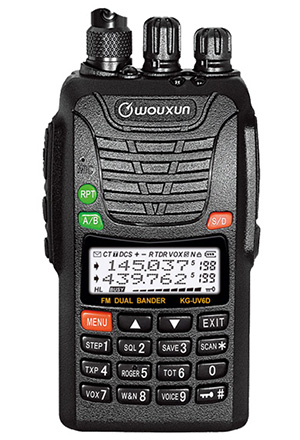

| Dual Band Two Way Radio KG-UV6D |
| |
| MAIN FUNCTION |
- DTMF encoding and decoding
- 1750 Hz Burst Tone
- Working Mode :U-V,V-U,V-V,U-U can be set freely
- CTCSS/DCS Scan
- VOX transmission
- SOS Function
- Bright Flashlight Illumination
- Digital FM Radio
- Bandwidth Selection
- Priority Scan ,Add Scanning Channel
- High/Low Power Selection
- 50 Groups CTCSS/105 Groups CCTCSS
- IP 55 Waterproof
- Busy channel lockout
- Transmit overtime voice prompt
- Begin/end transmitting beep prompt
- Auto / manual keypad lock
- Display select able on channel mode
- Low voltage voice prompt
- English voice guide
- Channel name edit and display
- Superheterodyne Receiver Type
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
Suitable For Different Countries
136-174&216-280MHz (RX/TX)
136-174&350-470MHz (RX/TX)
136-174&400-480MHz (RX/TX)
136-174&420-520MHz (RX/TX)
144-146&430-440MHz (RX/TX)
144-148&222-225MHz (RX/TX)
66-88&136-174MHz (RX/TX)
66-88&400-480MHz (RX/TX)
FM: 76-108MHz (RX) |
| Memory Channels |
199 channels |
| Frequency Stability |
±2.5ppm |
| Operating Voltage |
7.4V |
| Operating Temperature |
-30℃～+60℃ |
| Waterproof |
IP 55 |
| Antenna Impedance |
50Ω |
| Dimension |
65x119x39.5(mm) |
| Weight |
253g |
| Receiver |
| Sensitivity (12dB SINAD） |
0.16µV |
| Squelch Rejection Sensitivity |
≤0.8µV |
| Squelch Sensitivity |
≤0.2µV |
| Audio Output power |
500mW |
| Audio Distortion |
≤5% |
| Audio Response |
(300-3000Hz) +1 to -3dB |
| Co-channel Rejection |
≥-8.0dB |
| Performance of Amplitude Limiter |
≤3 |
| Adjacent Channel Selection |
Channel Space: 25KHz ≥70 dB
Channel Space: 12.5KHz ≥60 dB |
| Inter-modulation |
≥65 dB |
| Resistance |
≥84 dB |
| Spurious Radiation |
9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm |
| Transmitter |
| Frequency Stability |
±2.5PPM |
| RF Carrier Power |
UHF: 4W VHF: 5W |
| Effective Radiation Power (ERP) |
within pre-determined value ±7.5dB |
| Max. Frequency Deviation |
Channel Space: 25KHz ±5KHz Channel Space: 12.5KHz ±2.5KHz |
| Audio Modulation |
+3dB (pre-emphasis by 6dB between 0.3-3KHz) |
| Adjacent Channel Power |
Channel Space: 25KHz ≥70 dB Channel Space: 12.5KHz ≥60 dB |
| Spurious Radiation |
≤-30dBm |
| Inter modulation Attenuation |
≥40dB |
| Modulation Distortion |
≤10% |
| Residual FM |
≤-35dB |
| Residual AM |
≤3% |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-004 |
|
CHA-003 |
|
|
|
| Battery , 1700mAh |
|
Charger |
| |
|
|
| ANO-002 |
|
OTH-003 |
|
|
|
| Antenna |
|
Belt Clip |
| |
|
|
| OTH-005 |
|
|
|
|
|
| Hand Strap |
|
|
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-007 |
|
CHA-007 |
|
|
|
| Battery , 2600mAh |
|
Six-way Charger |
| |
|
|
| LCO-003 |
|
PCO-009 |
|
|
|
| Leather Case |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| HEO-003 |
|
HEO-005 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| SMO-001 |
|
SMO-002 |
|
|
|
| Speaker |
|
Speaker |
| |
|
|
| CCO-001 |
|
ELO-001 |
|
|
|
| Car Charger |
|
Eliminator |
| |
|
|
| ANO-041 |
|
ANO-006 |
|
|
|
| Antenna , 38CM |
|
Antenna |
| |
|
|
| AAO-001 |
|
AAO-002 |
|
|
|
| SL16 Antenna Adaptor |
|
BNC Antenna Adaptor |
| |
|
|
| BAO-001 |
|
|
|
|
|
| "AA" Battery Case |
|
|
| |
|
|
|
| |
