kg-uv7d

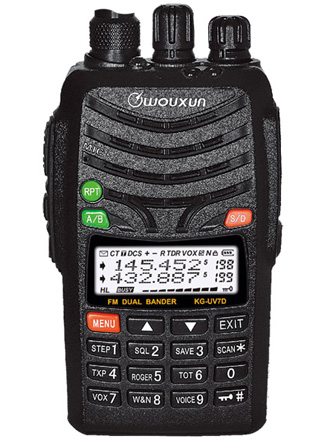

High Power Output , Dual Band Two Way Radio KG-UV7D

MAIN FUNCTION
  • DTMF Encoding And Decoding
  • VOX And SOS Function
  • Work Mode : U-V , V-U , V-V , U-U Can Be Set Freely
  • Bright Flashlight Iumination
  • Band Can be Set Freely VHF TX-UHF RX or UHF TX-VHF RX
  • Digital FM Radio
  • Bandwidth Selectable
  • Multi Scan Mode
  • Priority Scan , Add Scanning Channel
  • High / Low Power Selection
  • Channel Name Edit And Display
  • Burst Tone 1750Hz
  • 50 Groups CTCSS , 105 Groups DCS
  • Low Voltage Voice Prompt
  • Busy Channel Lockout
  • Transmit Overtime Voice Prompt
  • Begin / End Transmitting Beep Prompt
  • Auto / Manual Keypad Lock
  • Wire Clone , Programmable by Computer
  • Display Selectable on Channel Mode
  • Power on Display Message Customizable
  • IP55 Waterproof
  • English Voice Guide
  • Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Intergration
Frequency Range Suitable For Different Countries
144-146 & 430-440MHz (RX/TX)
136-174 & 400-480MHz (RX/TX)
136-174 & 420-520MHz (RX/TX)
50-54 & 136-174MHz (RX/TX)
FM: 76-108MHz (RX)
Memory Channels 199
Step Frequency 5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
2.5KHz (Optional)
Frequency Stability ±2.5 PPM
Operating Voltage 7.4 VDC
Operating Temperature -30℃~+60℃
Waterproof IP 55
Antenna Impedance 50Ω
Dimension 65 x 119 x 39 (mm)
Weight 253 g



Receiver
Sensitivity (12dB SINAD) 0.16µV
Squelch Rejection Sensitivity ≤0.8µV
Squelch Sensitivity ≤0.2µV
Audio Output power 500mW
Audio Distortion ≤5%
Audio Response (300-3000Hz) +1 to -3dB
Co-channel Rejection ≥-8.0dB
Performance of Amplitude Limiter ≤3
Adjacent Channel Selection Channel Space: 25KHz ≥70 dB
Channel Space: 12.5KHz ≥60 dB
Inter-modulation ≥65 dB
Resistance ≥84 dB
Spurious Radiation 9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm



Transmitter
Frequency Stability ±2.5PPM
RF Carrier Power UHF: 5W , VHF: 7W
Effective Radiation Power (ERP) within pre-determined value ±7.5dB
Max. Frequency Deviation Channel Space: 25KHz ±5KHz Channel Space: 12.5KHz ±2.5KHz
Audio Modulation +3dB (pre-emphasis by 6dB between 0.3-3KHz)
Adjacent Channel Power Channel Space: 25KHz ≥70 dB Channel Space: 12.5KHz ≥60 dB
Spurious Radiation ≤-30dBm
Inter modulation Attenuation ≥40dB
Modulation Distortion ≤10%
Residual FM ≤-35dB
Residual AM ≤3%




STANDARD ACCESSORY

BLO-004   CHA-003
battery

charger
Battery , 1700mAh   Charger + Adaptor

ANO-032   OTH-003
kg-uv7d antenna

belt clip
Antenna   Belt Clip

OTH-005
hand strap

Hand Strap


OPTIONAL  ACCESSORY

BLO-007   CHA-007
battery

six-way charger
Battery , 2600mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-001   ELO-001
car charger

eliminator
Car Charger   Eliminator

ANO-041   ANO-006
antenna

antenna
Antenna , 38CM   Antenna

AAO-001   AAO-002
adaptor

adaptor
SL16 Antenna Adaptor   BNC Antenna Adaptor

BAO-001
case

"AA" Battery Case
