kg-uv86

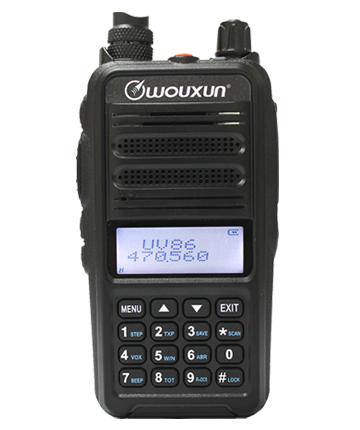

Dual Band , Two Way Radio KG-UV86

MAIN FUNCTION
  • Dual Band , Dual Frquency
  • CTCSS / DCS Scaning
  • VOX Transmission
  • CTCSS / DCS
  • Bandwidth Selection (25KHz / 12.5KHz)
  • 7W / 1W Power Adjustable
  • 400 Memory Channels
  • Long Battery Life
  • IP55 Dust / Water Proof


TECHNICAL SPECIFICATION

Intergration
Frequency Range Suitable For Different Countries
Frequency Step 5/6.25/10/12.5/25/50/100 KHz
Channel Number 400
Work Mode F2D/F3E
Operating Temperature -20℃~+40℃
Voltage 7.4 VDC
Antenna Impedance 50Ω



Transmitter
  Wide Narrow
Adjacent Channel Selectivity ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Max Frequency Deviation ±5KHz ±2.5KHz
Frequency Stability ±2.5PPM
Audio Distortion ≤5%
Output Power UHF=6W / 1W , VHF=7W / 1W



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥45dB
Audio Distortion ≤5%
Audio Power ≤500mW
Sensitivity UHF/VHF:0.25µV(12dB SINAD)




STANDARD ACCESSORY

BLO-009   CHA-029
battery

charger
Battery , 2600mAh   Desktop Charger

ANO-040   OTH-003
antenna

belt clip
Antenna   Belt Clip

OTH-005
hand strap

Hand Strap


OPTIONAL  ACCESSORY

BLO-009   CHA-010
battery

six-way charger
Battery , 2600mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-001   ELO-003
car charger

eliminator
Car Charger   Eliminator

ANO-011   AAO-002
antenna

adaptor
Antenna   BNC Antenna Adaptor

AAO-001
adaptor

SL16 Antenna Adaptor
