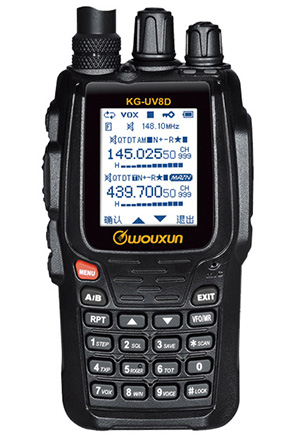

| Dual Bands , Large Color Screen , KG-UV8D |
| |
| MAIN FUNCTION |
- Dulex Repeater(VHF to UHFor UHF to VHF)
- Duplex Work Mode(TX on one area while RX on the other area simultaneously )
- Dual Receiving(RX on the same/different bands of A&B areas simultaneously)
- Dual Display,Dual Band Display on Large Screen,Two Independent Operation System
- Frequency Offset and Direction Programmable in Repeater Mode UHF/VHF or VHF/UHF
- Cross-Band Repeater
- 999 Memory Channels
- QT/DQT Encoding/Decoding,QT/DQT Scan
- VOX and SOS Funcion
- Multi Definition for Sidekeys
- Incoming Message Display Caller ID display
- DTMF Encoding and Decoding
- Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
- Voice Guide:Chinese/English
- Chinese/English Screen Display
- Bright Flashlight illumination
- Single-Tone Pulse Frequency:2100 / 1750/1000/1450Hz(signalling for activating repeater)
- Reverse Frequency
- Stopwatch
- All Calls,Group Calls And Selective Calls
- Priority Scan Function
- Remote Alarm
|
| |
TECHNICAL SPECIFICATION
| Frequency Range |
Suitable for Different Countries
136-174MHz & 400-470MHz
136-174MHz & 400-480MHz
136-174MHz & 420-520MHz
144-146MHz & 430-440MHz
144-148MHz & 420-520MHz |
| Step |
5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz |
| Channel Number |
999 |
| Work Mode |
F2D/F3E |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4VDC |
| Antenna Impedance |
50Ω |
| Weight |
490 g |
| Size |
125 x 62 x 33 MM |
| Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Max Frequency Deviation |
±5.0KHz |
±2.5KHz |
| Frequency Stability |
±2.5 PPM |
| Audio Distortion |
≤5% |
| Output Power |
UHF H:4W , L:1W
VHF H:5W , L:1W |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Power |
≤500mW |
| Audio Distortion |
≤5% |
| Sensitivity |
UHF/VHF：0.25µV（12dB SINAD） |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-006 |
|
CHA-009 |
|
|
|
| Battery , 1700mAh |
|
Charger |
| |
|
|
| ANO-011 |
|
OTH-003 |
|
|
|
| Antenna |
|
Belt Clip |
| |
|
|
| OTH-005 |
|
|
|
|
|
| Hand Strap |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-007 |
|
HEO-006 |
|
|
|
| Battery , 2600mAh |
|
Air Conduit Headset |
| |
|
|
| LCO-002 |
|
PCO-001 |
|
|
|
| Rubber Case |
|
USB Cable |
| |
|
|
|
| |
