kg-uv8p

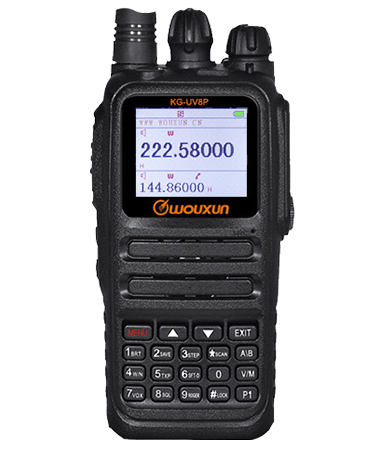

High Power Output , Color Screen , Radio KG-UV8P

MAIN  FUNCTION
  • Dulex Repeater , VHF to UHFor UHF to VHF
  • Memory Channels 999
  • QT/DQT Encoding / Decoding , QT / DQT Scan
  • VOX and SOS Funcion
  • Multi Definition for Sidekeys
  • Incoming Message Display Caller ID display
  • DTMF Encoding and Decoding
  • All Calls , Group Calls And Selective Calls
  • Dual Display ,Two Independent Operation System
  • Large Color Screen
  • Duplex Work Mode and Dual Receiving
  • Cross Band Repeater
  • Power on Message Editable
  • Wide / Narrow Bandwidth Selection (12.5 / 25 KHz)
  • Chinese and English Voice Guide
  • Chinese and English Screen Display
  • Bright Flashlight illumination
  • Reverse Frequency
  • Single-Tone Pulse Frequency:1000/1450/1750/2100Hz
  • Stopwatch
  • Remote Alarm
  • Priority Scan Function
  • Voice Encryption and Non-Standard CTCSS/DCS
  • Voice Compander


TECHNICAL SPECIFICATION

Frequency Range Suitable For Different Countries
136-174MHz & 230-320MHz
Frequency Step 5/6.25/10/12.5/25/50/100 KHz
Channel Number 999
Work Mode F2D / F3E
Operating Temperature -20℃~+40℃
Voltage 7.4VDC
Antenna Impedance 50Ω



Transmitter
  Wide Narrow
Adjacent Channel Selectivity ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Max Frequency Deviation ±5.0KHz ±2.5KHz
Frequency Stability ±2.5 PPM
Audio Distortion ≤5%
Output Power UHF: 8W / 5W / 1W
VHF: 10W / 7W / 1W



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Power ≤500mW
Audio Distortion ≤5%
Sensitivity UHF/VHF:0.25µV(12dB SINAD)




STANDARD ACCESSORY

BLO-009   CHA-028
battery

charger
Battery , 2600mAh   Desktop Charger

ANO-039   CHA-028
antenna

adaptor
Antenna   Power Supply Adaptor

OTH-005   OTH-001
hand strap

belt clip
Hand Strap   Belt Clip
