kg-uv8q

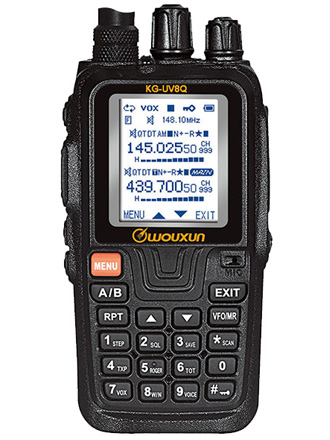

Large Color Screen , Dual Band Two Way Radio KG-UV8Q

MAIN FUNCTION
  • Dulex Repeater (VHF to UHF or UHF to VHF)
  • Duplex Work Mode (TX on One Area While RX on The Other Area Simultaneously)
  • Dual Receiving (RX on The Same / Different Bands of A&B Areas Simultaneously)
  • Dual Band Display on Large Screen , Two Independent Operation System
  • Frequency Offset and Direction Programmable in Repeater Mode
  • Cross-Band Repeater
  • 999 Memory Channels
  • QT/DQT Encoding / Decoding , QT/DQT Scan
  • VOX and SOS Funcion
  • Multi Definition for Sidekeys
  • Chinese / English Screen Display , Voice Guide
  • Incoming Message Display Caller ID
  • DTMF Encoding and Decoding
  • Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency : 2100Hz / 1750Hz / 1450Hz / 1000Hz
  • Reverse Frequency
  • Stopwatch
  • All Calls , Group Calls , Selective Calls
  • Priority Scan Function
  • Remote Alarm


TECHNICAL SPECIFICATION

Frequency Range 144-146 MHz (TX & RX)
430-440 MHz (TX & RX)
Step 5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number 999
Work Mode F2D/F3E
Operating Temperature -20℃~+40℃
Voltage 7.4 VDC
Antenna Impedance 50Ω
Weight 490 g
Size 125 x 62 x 33 MM



Transmitter
  Wide Narrow
Adjacent Channel Selectivity ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Max Frequency Deviation ±5.0KHz ±2.5KHz
Frequency Stability ±2.5 PPM
Audio Distortion ≤5%
Output Power UHF H:4W , L:1W
VHF H:5W , L:1W



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Power ≤500mW
Audio Distortion ≤5%
Sensitivity UHF/VHF:0.25µV(12dB SINAD)




STANDARD ACCESSORY

BLO-008   CHA-023
battery

charger
Battery , 1700mAh   Charger

ANO-011   OTH-001
antenna

belt clip
Antenna   Belt Clip

OTH-005
hand strap

Hand Strap

OPTIONAL  ACCESSORY

BLO-009   CHA-010
battery

six-way charger
Battery , 2600mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-001   ELO-003
car charger

eliminator
Car Charger   Eliminator

ANO-011   AAO-002
antenna

adaptor
Antenna   BNC Antenna Adaptor

AAO-001
adaptor

SL16 Antenna Adaptor
