kg-uv950p

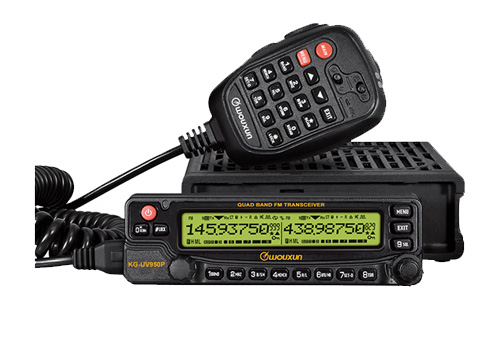

Quad Bands Transmission , Eight Bands RX KG-UV950P

MAIN FUNCTION
  • Twin band / same band simultaneous reception
  • Eight Bands for Receiving, Four Bands(Including SW) for Transmitting
  • Remote Control Function
  • Dual Frequency Display
  • Dual Independant Operation System
  • Unidirectional or Two Way Cross Band Repeater
  • 999memory channels
  • Front panel and radio body flexible for separation
  • QT/DOT encoding and decoding
  • QT/DOT scanning
  • Non-standard CTCSS/DCS setting freely
  • Same -band repeat on two combined radios
  • High power output
  • Dual track and multi-way loudspeakers
  • Hand microphone DTMF with loudspeakers
  • Caller ID display
  • DTMF encoding and decoding
  • Group calls, all calls and selective calls
  • 8 groups of scrambler
  • Priority channel scanning
  • APO power management
  • Wide / narrow bandwidth select able
  • Voice guide
  • Automatic temperature detection
  • Stun/kill function
  • Single audio pulse frequency
  • Multiple back light color select able
  • Scan channel adding /deleting
  • Grouping channel scanning
  • Multiple scanning ways
  • Multiple setting for cooling fan
  • Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Intergration
Frequency Range    Suitable for Different Countries
   TX , FM
   26-29.995MHz / 50-53.995MHz /    136-174.995 / 400-480.995MHz
   RX , FM
   26-29.995MHz / 50-54.995MHz /
   65-108MHz 108-180.995MHz /
   320-349.995 / 400-480.995MHz /    700-987.995MHz
   RX , AM
   108MHz -136MHz
Step 5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number 999
Work Mode F2D/F3E
Operating Temperature -20℃~+60℃
Voltage 13.8VDC±15%
Antenna Impedance 50Ω
Weight 1438 g
Size 140 x 44 x 207 MM



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Power transceiver≤3w ,
hand microphone≤1w
Sensitivity UHF/VHF:0.25µV(12dB SINAD)



Transmitter
Adjacent Channel Power ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Signal to Noise Ratio ≥40dB ≥36dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Output Power VHF(5W/10W/25W/50W) UHF(5W/10W/25W/40W)




STANDARD  ACCESSORY

MMO-003   SAO-001
microphone

switchboard
Hand Microphone   Inclined Switchboard

SAO-002   MBO-001
switchboard

mounting bracket
Flat Switchboard   Mounting Bracket

RBO-001   PWO-002
bracket

power cord
Front Panel Bracket   Mobile Power Cord

SCO-002   SSO-001
extension cable

screw sets
Extension Cable   Screw Sets

FUO-001
fuse

Fuse , 15A 32V


OPTIONAL  ACCESSORY

SPO-002   PCO-003
switching power

usb cable
Switching Power , 30A   USB Cable

ANO-035   ANO-016
antenna

magnetic mount
Mobile Antenna   Magnetic Mount
