kg-uv960p

Shortcut Key Front Panel , Quad Bands Transmission

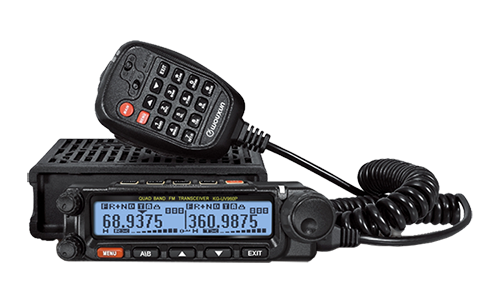

Car Mobile Radio KG-UV960P

MAIN FUNCTION
  • Dual Frequency Display
  • Dual Independant Operation System
  • Eight Bands for Receiving
  • Four Bands (Including SW) for Transmitting
  • Twin Band / Same Band Simultaneous Reception
  • 999 Memory Channels
  • Front Panel And Radio Body Flexible For Separation
  • QT/DOT Encoding And Decoding
  • QT/DOT Scanning
  • Non-standard CTCSS/DCS Setting Freely
  • Same Band Repeat on Two Combined Radios
  • Dual Track And Multi-way Loudspeakers
  • Hand Microphone DTMF With Loudspeakers
  • Caller ID Display
  • DTMF Encoding And Decoding
  • Multiple Scanning Ways
  • Group Calls, All Calls And Selective Calls
  • 8 Groups of Scrambler
  • Priority Channel Scanning
  • APO Power Management
  • Wide / Narrow Bandwidth Selectable
  • Chinese or English Voice Guide
  • Automatic Temperature Detection
  • Stun / Kill Function
  • Single Audio Pulse Frequency
  • Multiple Back Light Color Selectable
  • Scan Channel Adding / Deleting
  • Grouping Channel Scanning
  • Multiple Setting for Cooling Fan
  • Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Intergration
Frequency Range    Suitable for Different Countries
   TX , FM
   30-44MHz / 45-53MHz
   66-88MHz / 350-390MHz
   RX , FM
   30-44MHz / 45-53MHz
   65-108MHz / 108-180.995MHz
   320-349.995 / 350-390MHz
   700-987.995MHz
   RX , AM
   108MHz -136MHz
Step 5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number 999
Work Mode F2D/F3E
Operating Temperature -20℃~+60℃
Voltage 13.8VDC±15%
Antenna Impedance 50Ω
Weight 1438 g
Size 140 x 44 x 207 MM



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Power Transceiver≤3w ,
Hand Microphone≤1w
Sensitivity UHF/VHF:0.25µV(12dB SINAD)



Transmitter
Adjacent Channel Power ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Signal to Noise Ratio ≥40dB ≥36dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Output Power VHF(5W/10W/25W) UHF(5W/10W/25W)




Please Click The Icon to Select The Items You Want
And Send The Inquiry to WOUXUN For Offers

STANDARD  ACCESSORY

MMO-003   SAO-001
microphone ...

switchboard ...
Hand Microphone   Inclined Switchboard

SAO-002   MBO-001
switchboard ...

mounting bracket ...
Flat Switchboard   Mounting Bracket

RBO-001   PWO-002
panel bracket ...

power cord ...
Front Panel Bracket   Mobile Power Cord

SCO-002   SSO-001
extension cable ...

screw sets ...
Extension Cable   Screw Sets

FUO-001
fuse ...

Fuse , 15A 32V


OPTIONAL  ACCESSORY

SPO-002   PCO-003
switching power ...

usb cable ...
Switching Power , 30A   USB Cable

ANO-035   ANO-016
antenna ...

magnetic mount ...
Mobile Antenna   Magnetic Mount
