wouxun kg-uv980r

Shortcut Key Front Panel , SW 70-77MHz

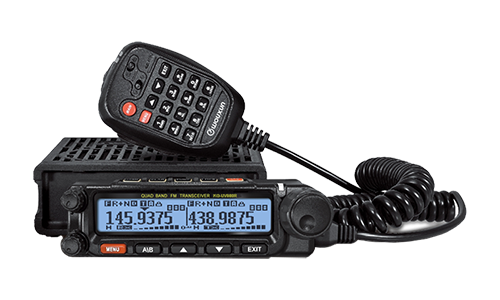

Car Mobile Radio KG-UV980R

MAIN  FUNCTION
  • Dual Frequency Display
  • Dual Independant Operation System
  • Eight Bands for Receiving
  • Four Bands (Including SW) for Transmitting
  • Twin Band / Same Band Simultaneous Reception
  • 999 Memory Channels
  • Front Panel And Radio Body Flexible For Separation
  • QT/DOT Encoding And Decoding
  • QT/DOT Scanning
  • Non-standard CTCSS/DCS Setting Freely
  • Same Band Repeat on Two Combined Radios
  • Dual Track And Multi-way Loudspeakers
  • Hand Microphone DTMF With Loudspeakers
  • Caller ID Display
  • DTMF Encoding And Decoding
  • Multiple Scanning Ways
  • Group Calls, All Calls And Selective Calls
  • 8 Groups of Scrambler
  • Priority Channel Scanning
  • APO Power Management
  • Wide / Narrow Bandwidth Selectable
  • Chinese or English Voice Guide
  • Automatic Temperature Detection
  • Stun / Kill Function
  • Single Audio Pulse Frequency
  • Multiple Back Light Color Selectable
  • Scan Channel Adding / Deleting
  • Grouping Channel Scanning
  • Multiple Setting for Cooling Fan
  • Superheterodyne Receiver Type


TECHNICAL  SPECIFICATION

Intergration
Frequency Range    Suitable For Different Countries
   TX , FM
   50-54MHz / 70-77MHz
   140-170MHz / 400-470MHz
   RX , FM
   50-54MHz / 70-77MHz
   108-180.995MHz / 140-170MHz
   320-349.995MHz / 400-470MHz
   700-987.995MHz
   RX , AM
   108MHz -136MHz
Step 5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number 999
Work Mode F2D / F3E
Operating Temperature -20℃~+60℃
Voltage 13.8 VDC±15%
Antenna Impedance 50 Ω
Weight 1438 G
Size 140 x 44 x 207 MM



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Power Transceiver≤3w ,
Hand Microphone≤1w
Sensitivity UHF/VHF:0.25µV(12dB SINAD)



Transmitter
Adjacent Channel Power ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Signal to Noise Ratio ≥40dB ≥36dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Output Power VHF(5W/10W/25W/50W) UHF(5W/10W/25W/40W)




STANDARD  ACCESSORY

MMO-003   SAO-001
microphone

switchboard
Hand Microphone   Inclined Switchboard

SAO-002   MBO-001
switchboard

bracket
Flat Switchboard   Mounting Bracket

RBO-001   PWO-002
bracket

power cord
Front Panel Bracket   Mobile Power Cord

SCO-002   SSO-001
extension cable

screw sets
Extension Cable   Screw Sets

FUO-001
fuse

Fuse , 15A 32V


OPTIONAL  ACCESSORY

SPO-002   PCO-003
switching power

usb cable
Switching Power , 30A   USB Cable

ANO-035   ANO-016
antenna

mount
Mobile Antenna   Magnetic Mount
