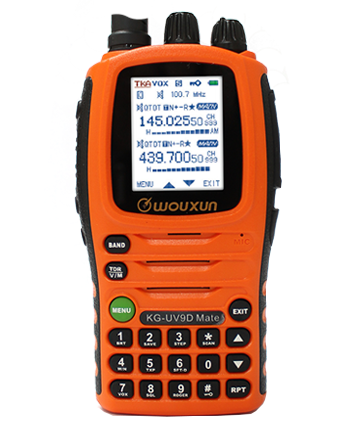

| Colorful Shell , UV Dual Bands , Radio KG-UV9D Mate |
| |
| MAIN FUNCTION |
- Cross Band Repeater
- Large Color Screen
- Completely Turn Off Display Screen Background Light
- Completely Trun Off Flickering Indicator Light
- Dual Receiving
- Duplex Work on A&B Areas
- RX on The Same / Different Bands of A&B Areas Simultaneously
- Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
- Channel Groups Scanning
- Memory Channels 999
- QT / DQT Encoding / Decoding , QT / DQT Scan
- Non-Standard CTCSS Can be Set Arbitrarily
- VOX and SOS Function
- Reverse Frequency
- Mplitude-frequency PTT Settings
- Incoming Message Display Caller ID Display
- DTMF Encoding and Decoding
- All Calls , Group Calls And Selective Calls
- PriorRemote Alarmity Scan Function
- Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
- Chinese or English Voice Guide
- Chinese or English Screen Display
- English Channel Name Edit
- Bright Flashlight illumination
- Single-Tone Pulse Frequency: 1000/1450/1750/2100Hz
- Stopwatch
- Multi Definition for Sidekeys
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
Suitable for Different Countries
TX , FM
136-174MHZ , 400-512MHZ
RX , FM
76-108MHZ(AM)
108-136MHZ(Air Ground)
136-180MHZ , 230-250MHZ(FM)
350-400MHZ , 400-512MHZ(FM)
700-985MHZ(FM) |
| Frequency Step |
2.5/5.0/6.25/10/12.5/
25/50/100 KHz |
| Channel Number |
999 |
| Work Mode |
F2D / F3E |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4 VDC |
| Antenna Impedance |
50Ω |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Audio Power |
≤500mW |
| Sensitivity |
108-136MHz(AM) -106.0dbm SN 13dB 136-180MHz -119.0dbm SINAD 13dB 230-250MHz -116.0dbm SINAD 13dB 350-400MHz -119.0dbm SINAD 13dB 400-512MHz -119.0dbm SINAD 13dB 700-986MHz -96.0dbm SINAD 12dB |
| Transmitter |
| Adjacent Channel Power |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Max Frequency Deviation |
±5KHz |
±2.5KHz |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Frequency Stability |
±2.5PPM |
| Audio Distortion |
≤5% |
| Output Power |
UHF , H:8W , M:5W , L:1W
VHF , H:10W , M:7W , L:1W |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-012 |
|
CHA-011 |
|
|
|
| Battery , 3200mAh |
|
Desktop Charger |
| |
|
|
| CHA-011 |
|
ANO-011 |
|
|
|
| Power Supply Adapter |
|
Antenna |
| |
|
|
| OTH-005 |
|
OTH-001 |
|
|
|
| Hand Strap |
|
Belt Clip |
| |
|
|
|
| |
