kg-uv9d

Dual Bands Transmission , Seven Bands Reception

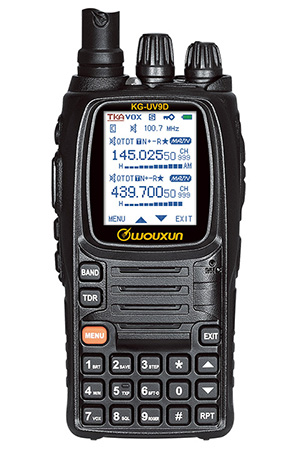

Two Way Radio KG-UV9D

MAIN FUNCTION
  • Dual Receiving
  • Seven Bands Reception and Dual Bands Transmission
  • Multi Scanning Mode and Channel Groups Scanning
  • Duplex Work on A&B Areas(TX on one area while RX on the other area simultaneously)
  • RX on the same/different bands of A&B areas simultaneously
  • Simultaneously Scanning on Twin Band
  • Memory Channels 999
  • QT/DQT Encoding/Decoding,QT/DQT Scan
  • Non-Standard CTCSS can be set arbitrarily
  • VOX and SOS function
  • Multi Definition for Sidekeys
  • Reverse Frequency
  • Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
  • mplitude-frequency PTT settings
  • ncoming Message Display Caller ID display
  • DTMF Encoding&Decoding
  • All Calls,Group Calls And Selective Calls
  • PriorRemote Alarmity Scan Function
  • Voice Guide:Chinese/English
  • Chinese/English Screen Display
  • English Channel Name Edit
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz
  • Stopwatch
  • Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Intergration
Frequency Range    Suitable for Different Countries
   TX , FM
   136-174MHZ , 400-512MHZ
   RX , FM
   76-108MHZ(AM)
   108-136MHZ(Air Ground)
   136-180MHZ , 230-250MHZ(FM)
   350-400MHZ , 400-512MHZ(FM)
   700-985MHZ(FM)
Step 2.5K/5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number 999
Work Mode F2D/F3E
Operating Temperature -20℃~+40℃
Voltage 7.4 VDC
Antenna Impedance 50Ω
Weight 490 g
Size 123 x 58 x 31 MM



Receiver
  Wide Narrow
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Power ≤500mW
Sensitivity 08-136MHz(AM) -106.0dbm SN 13dB 136-180MHz -119.0dbm SINAD 13dB 230-250MHz -116.0dbm SINAD 13dB 350-400MHz -119.0dbm SINAD 13dB 400-512MHz -119.0dbm SINAD 13dB 700-986MHz -96.0dbm SINAD 12dB



Transmitter
Adjacent Channel Power ≥70dB ≥60dB
Type of Modulation 16K F3E 11K F3E
Spurious ≥60dB ≥60dB
Max Frequency Deviation ±5KHz ±2.5KHz
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Frequency Stability ±2.5PPM
Audio Distortion ≤5%
Output Power UHF H:5W , M:2W , L:1W
VHF H:4W , M:2W , L:1W




STANDARD ACCESSORY

BLO-008   CHA-011
kg-uv9d battery

kg-uv9d charger
Battery , 2000mAh   Charger

CHA-011   OTH-005
kg-uv9d power adapter

hand strap
Power Supply Adapter   Hand Strap

ANO-014   OTH-001
kg-uv9d antenna

belt clip
Antenna   Belt Clip


OPTIONAL  ACCESSORY

BLO-012   CHA-013
battery

six-way charger
Battery , 3200mAh   Six-way Charger

LCO-003   PCO-009
leather case

usb cable
Leather Case   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

HEO-003   HEO-005
headset

earphone
Headset   Air Conduit Earphone

SMO-001   SMO-002
speaker

speaker
Speaker   Speaker

CCO-001   ELO-004
car charger

eliminator
Car Charger   Eliminator

ANO-012   AAO-002
antenna

adaptor
Antenna   BNC Antenna Adaptor

AAO-001
adaptor

SL16 Antenna Adaptor
