kg-uva1

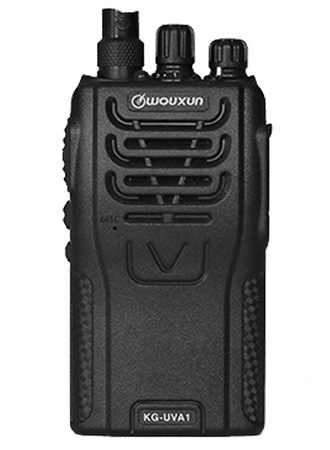

Two Way Radio KG-UVA1

MAIN FUNCTION
  • Working Mode :U-V,V-U,V-V,U-U can be set freely
  • SOS Function
  • 1750Hz Burst Tone
  • DTMF Encoding Function
  • 105 Groups DCS/50 Groups CTCSS
  • Bright Flashlight Illumination
  • Band Can Be Set Freely: VHF TX-UHF RX or UHF TX-VHF RX
  • English Voice Guide
  • FM Radio
  • Wide/Narrow Bandwidth Selection(25KHz /12.5KHz )
  • Priority Channel Scan
  • High/Low Power Selection(VHF:5W/1W UHF4W/1W)
  • Add Scanning Channel
  • Multi Scan Mode (TO/CO/SE)
  • VOX Transmission(Level Adjustable)
  • Transmit Overtime Voice Prompt
  • Begin/End Transmitting BEEP Prompt
  • Program By Computer
  • Wire Clone Function
  • IP55 Waterproof
  • Voice Prompt
  • Low Battery Prompt
  • Busy Channel Lockout
  • Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Intergration
Frequency Range Suitable For Different Countries
136-174&216-280MHz (RX/TX)
136-174&350-470MHz (RX/TX)
136-174&400-480MHz (RX/TX)
136-174&420-520MHz (RX/TX)
144-146&430-440MHz (RX/TX)
144-148&222-225MHz (RX/TX)
66-88&136-174MHz (RX/TX)
66-88&400-480MHz (RX/TX)
FM: 76-108MHz (RX)
Memory Channels 16 channels
Frequency Stability ±2.5ppm
Operating Voltage 7.4V
Operating Temperature -30℃~+60℃
Waterproof IP 55
Antenna Impedance 50Ω
Dimension 61x121x37.5(mm)
Weight 228 g



Receiver
Sensitivity (12dB SINAD) 0.16µV
Squelch Rejection Sensitivity ≤0.8µV
Squelch Sensitivity ≤0.2µV
Audio Output power 500mW
Audio Distortion ≤5%
Audio Response (300-3000Hz) +1 to -3dB
Co-channel Rejection ≥-8.0dB
Performance of Amplitude Limiter ≤3
Adjacent Channel Selection Channel Space: 25KHz ≥70 dB
Channel Space: 12.5KHz ≥60 dB
Inter-modulation ≥65 dB
Resistance ≥84 dB
Spurious Radiation 9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm



Transmitter
Frequency Stability ±2.5PPM
RF Carrier Power UHF: 4W VHF: 5W
Effective Radiation Power (ERP) within pre-determined value ±7.5dB
Max. Frequency Deviation Channel Space: 25KHz ±5KHz Channel Space: 12.5KHz ±2.5KHz
Audio Modulation +3dB (pre-emphasis by 6dB between 0.3-3KHz)
Adjacent Channel Power Channel Space: 25KHz ≥70 dB Channel Space: 12.5KHz ≥60 dB
Spurious Radiation ≤-30dBm
Inter modulation Attenuation ≥40dB
Modulation Distortion ≤10%
Residual FM ≤-35dB
Residual AM ≤3%




STANDARD ACCESSORY

BLO-001   CHA-003
kg-uva1 battery

charger
Battery , 1300mAh   Charger + Adaptor

ANO-002   OTH-003
kg-uva1 antenna

belt clip
Antenna   Belt Clip

OTH-005
hand strap

Hand Strap
