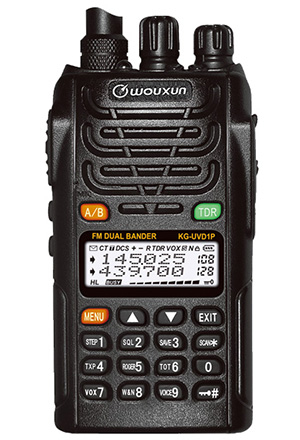

| Dual Bands , Dual Display , Two Way Radio KG-UVD1P |
| |
| MAIN FUNCTION |
- 1750 Hz Burst Tone
- DTMF Encoding Function
- Working Mode :vhf tx-uhf rx or uhf tx-vhf rx can be set freely
- CTCSS/DCS Scan
- VOX and SOS Function
- Bright Flashlight Illumination
- Digital FM Radio
- Bandwidth Selection
- Priority Scan ,Add Scanning Channel
- High/Low Power Selection
- 50 Groups CTCSS/105 Groups CCTCSS
- IP 55 Waterproof
- Superheterodyne Receiver Type
|
| |
TECHNICAL SPECIFICATION
| Transmitter |
| Frequency Stability |
±2.5PPM |
| RF Carrier Power |
VHF:5W UHF:4W |
| Effective Radiation Power |
within pre-determined value ±7.5dB |
| Audio Modulation |
+3dB(0.3-3KHz) |
| Max Frequency Deviation |
12.5KHz ±2.5KHz , 25KHz ±5KHz |
| Adjacent Channel Power |
12.5KHz ≥60dB , 25KHz ≥70dB |
| Frequency Steup |
5 , 6.25 , 10 , 12.5 , 25 , 50 , 100KHz |
| Spurious Radiation |
≤-30dB |
| Inter Modulation Attenuation |
≥40dB |
| Modulation Distortion |
≤10% |
| Residual FM |
≤-35dB |
| Residual AM |
≤3% |
| Emission Designator |
F3E |
| Receiver |
| Adjacent Channel Selectivity |
12.5KHz ≥60dB , 25KHz ≥70dB |
| Squelch Rejection Sensitivity |
≤0.8µV |
| Squelch Sensitivity |
≤0.2µV |
| Inter Modulation |
≥65dB |
| Co-channel Rejection |
≥-8.0dB |
| Performance of Amplitude Limiter |
≤3 |
| Resistance |
≥84 dB |
| Spurious Radiation |
9KHz-1GHz≤-57dBm ,
1GHz-4GHz≤-47dBm |
| Audio Response |
+1~-3dB(0.3~3KHz) |
| Audio Distortion |
≤5% |
| Sensitivity |
0.16µV SINAD 12dB |
| Audio Power |
≤500mW |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-001 |
|
CHA-003 |
|
|
|
| Battery , 1300mAh |
|
Charger + Adaptor |
| |
|
|
| ANO-002 |
|
OTH-003 |
|
|
|
| Antenna |
|
Belt Clip |
| |
|
|
| OTH-005 |
|
|
|
|
|
| Hand Strap |
|
|
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-007 |
|
CHA-007 |
|
|
|
| Battery , 2600mAh |
|
Six-way Charger |
| |
|
|
| LCO-003 |
|
PCO-009 |
|
|
|
| Leather Case |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| HEO-003 |
|
HEO-005 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| SMO-001 |
|
SMO-002 |
|
|
|
| Speaker |
|
Speaker |
| |
|
|
| CCO-001 |
|
ELO-001 |
|
|
|
| Car Charger |
|
Eliminator |
| |
|
|
| ANO-041 |
|
ANO-006 |
|
|
|
| Antenna , 38CM |
|
Antenna |
| |
|
|
| AAO-001 |
|
AAO-002 |
|
|
|
| SL16 Antenna Adaptor |
|
BNC Antenna Adaptor |
| |
|
|
| BAO-001 |
|
|
|
|
|
| "AA" Battery Case |
|
|
| |
|
|
|
| |
