kg-v55

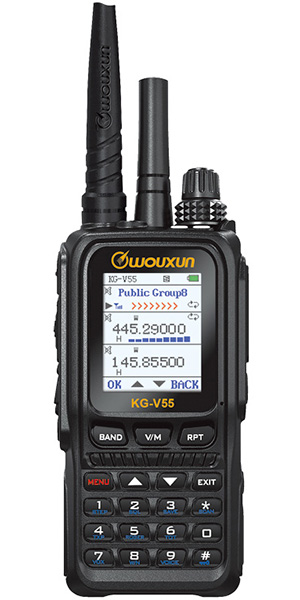

UV Dual Band , 4G LTE Public Network Radio KG-V55

MAIN FUNCTION
  • Large color screen
  • Compatible With 4G / 3G / 2G Public Network
  • Twin Modes & Tri Bands
  • Cross-Mode Repeat , Simcard Radio<->Analogue Radio, Analogue Radio<->Analogue Radio
  • Simultaneous Reception among three bands
  • Duplex work among three bands (one band TX, another bands RX)
  • 200 contacts , Caller ID
  • Offset , Shift Frequency in Analogue Mode
  • UHF/VHF, VHF/UHF cross-band Repeat
  • VOX Function
  • Multi-definition for side keys
  • DTMF Encode and Decode
  • Memory Channels 999
  • Selective Calls, Group Calls, All Calls
  • SOS Emergency Alarm
  • Lamp , Backlight , stopwatch
  • Talk-Around
  • Compander and scrambler
  • Supprot RealPTT Public Network Platform
>> Yearly fee for the Platform Administration each radio is charged


TECHNICAL SPECIFICATION

General
Audio Power ≤500mW
Operating Temperature -20℃~+40℃
Voltage 3.7 VDC
Weight 300 g
Size 136 x 59 x 34 MM
System Linux



Public Network
Work Band 4G / 3G / 2G
Max TX Power 23~25dbm @AII up bits
RX Sensitivity -106dbm



Analogue
Frequency Range Suitable for different countries
136-174 & 400-470MHz (RX/TX)
136-174 & 400-480MHz (RX/TX)
144-148 & 430-440MHz (RX/TX)
76-108MHz (FM , RX , Setp 100K)
Setp 5K/6.25K/12.5K/25K/50K/100K
Memory Channels 999
Mode F2D/F3E
Antenna Impedance 50Ω



Analogue Transmitter
  Wide Narrow
Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
Inter-Modulation ≤ 65dB ≤ 65dB
Spurious Response ≤ 70dB ≤ 70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Squelch Sensitivity ≥45dB ≥40dB
Audio Distortion ≤5%
Output Power UHF 2.5W , VHF 3.0W



Analogue Receiver
  Wide Narrow
Modulation 16K F3E 11K F3E
Effective Radiation Power ≥70dB ≥60dB
Spurious Response ≥60dB ≥60dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Max Offset ±5KHZ ±2.5KHZ
Frequency Stability ±2.5PPM
Audio Distortion ≤5%
Sensitivity UHF : 0.25uV(12dB SINAD)
VHF : 0.25uV(12dB SINAD)




STANDARD ACCESSORY

BLO-014   CHA-014
battery

kg-v55 charger
Battery , 6000mAh   Charger

CHA-014   ANO-011
kg-v55 power adapter

antenna
Power Supply Adapter   Antenna

OTH-005   OTH-002
strap

belt clip
Hand Strap   Belt Clip


OPTIONAL  ACCESSORY

CCO-002   ELO-006
charger

eliminator
Car Charger   Eliminator

CHA-031   PCO-009
cable

usb cable
USB Charging Cable   USB Cable

HEO-001   HEO-002
headset

earphone
Headset   Air Conduit Earphone

CHA-032   SMO-002
six-way charger

speaker
Six-way Charger   Speaker
