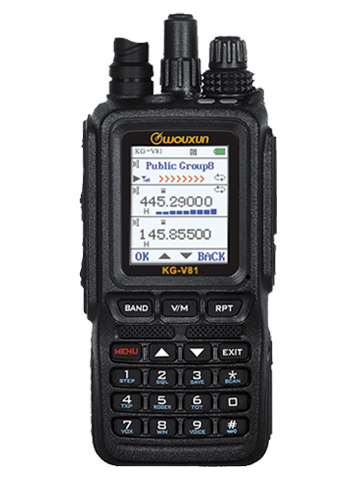

UV Dual Band Radio , Public Network And Analogue
Simcard Radio KG-V81 |
| |
| MAIN FUNCTION |
- Compatible With 4G / 3G / 2G Public Network
- Network to Analogue , Analogue to Network , Analogue to Analogue
- Duplex Work at A / B / C Areas , One Area TX , Another Area RX
- Dual Receive , Simultaneous Reception Among A / B / C Areas , Same Band or
Cross Band Available
- Large Colorful Screen
- Tri-Bands Display on The Large Screen Independently
- Frequency Offset And Direction Programmable in Repeater Mode UHF / VHF
or VHF / UHF Cross-Band Repeater
- QT / DQT Encoding and Decoding
- QT / DQT Scan
- Bright Flashlight Illumination
- Single Tone Pulse Frequency , 1000 / 1450 / 1750 / 2100 KHz
- VOX and SOS Function
- Multi Definition For Sidekeys
- Incoming Message Display Caller ID
- DTMF Encoding And Decoding
- All Calls , Group Calls And Selective Calls
- Priority Scan Function
- Remote Alarm
- Wide / Narrow Bandwidth Selection (12.5 / 25 KHz)
- Chinese or English Voice Guide
- Reverse Frequency
- Stopwatch , Scramlber , Compander
- Setting For Backlight
- Supprot RealPTT Public Network Platform
|
| |
TECHNICAL SPECIFICATION
| General |
| Audio Power |
≤500 mW |
| Operating Temperature |
-20 ℃～+40 ℃ |
| Voltage |
7.4 VDC |
| Weight |
290 G |
| Dimension |
48 x 28 x 130 MM |
| System |
Linux |
| Public Network |
| Work Frequency |
Compatible With 4G / 3G / 2G |
| Max TX Power |
23~25dBm @AII Up Bits |
| RX Sensitivity |
-106 dBm |
| Analogue |
| Frequency Range |
Suitable For Different Countries
136-174 & 400-470MHz (RX/TX)
136-174 & 400-480MHz (RX/TX)
144-148 & 430-440MHz (RX/TX)
76-108MHz (FM , RX , Setp100K) |
| Setp |
5 / 6.25 / 12.5 / 25 / 50 / 100KHz |
| Memory Channels |
999 |
| Mode |
F2D / F3E |
| Antenna Impedance |
50 Ω |
| Analogue Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤ 70dB |
≤ 60dB |
| Inter-Modulation |
≤ 65dB |
≤ 65dB |
| Spurious Response |
≤ 70dB |
≤ 70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Squelch Sensitivity |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Output Power |
UHF 4W , VHF 5W |
| Analogue Receiver |
| |
Wide |
Narrow |
| Modulation |
16K F3E |
11K F3E |
| Effective Radiation Power |
≥70dB |
≥60dB |
| Spurious Response |
≥60dB |
≥60dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Max Offset |
±5 KHZ |
±2.5 KHZ |
| Frequency Stability |
±2.5 PPM |
| Audio Distortion |
≤5% |
| Sensitivity |
UHF : 0.25uV(12dB SINAD)
VHF : 0.25uV(12dB SINAD) |
|
| |
Please Click The Icon to Select The Items You Want
And Send The Inquiry to WOUXUN For Offers |
| |
| STANDARD ACCESSORY |
| |
| BLO-015 |
|
CHA-014 |
|
|
|
| Battery , 2500mAh |
|
Desktop Charger |
| |
|
|
| ANO-011 |
|
CHA-014 |
|
|
|
| Antenna |
|
Power Supply Adaptor |
| |
|
|
| OTH-005 |
|
OTH-002 |
|
|
|
| Hand Strap |
|
Blet Clip |
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| ELO-006 |
|
CHA-032 |
|
|
|
| Eliminator |
|
Six-way Charger |
| |
|
|
| CCO-002 |
|
PCO-009 |
|
|
|
| Car Charger |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| SMO-002 |
|
CHA-031 |
|
|
|
| Speaker |
|
USB Charging Cable |
| |
|
|
|
| |
