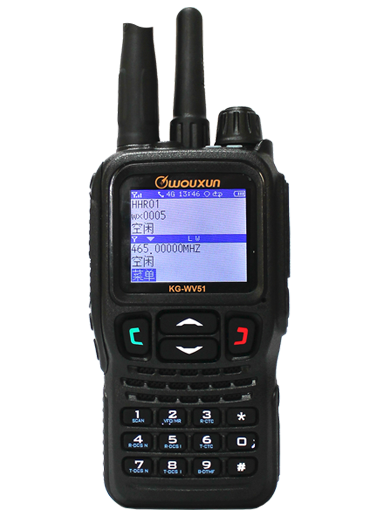

| Cross Mode Repeat , Public Network Radio KG-WV51 |
| |
| MAIN FUNCTION |
- Cross-Mode Repeat , Simcard Radio to Analogue
- Compatible With 4G / 3G / 2G Public Network
- Large Color Screen
- Public Network Push to Talk And Analogue Radio
- RX On The Same / Different Bands of A&B Areas Simultaneously
- Duplex Work Mode , One Band TX , Another Bands RX
- DTMF Encode and Decode
- QT/DQT Encoding and Decoding
- Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
- Single-Tone Pulse Frequency : 2100Hz / 1750Hz / 1450Hz / 1000Hz
- Multi Definition for Sidekeys
- Selective Calls, Group Calls, All Calls
- Lamp Function
- GPS Location
- Phone Call Function
- Supprot RealPTT Public Network Platform
|
| |
TECHNICAL SPECIFICATION
| General |
| Audio Power |
≤500mW |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4 VDC |
| Weight |
260 G |
| Size |
62 x 34 x 123 MM |
| Public Network |
| Work Band |
4G LTE , 3G , 2G |
| Max TX Power |
23~25dBm @AII Up Bits |
| RX Sensitivity |
-106dBm |
| Analogue |
| Frequency Range |
400-470 MHz (RX/TX) |
| Setp |
5/6.25/12.5/25/50/100 KHz |
| Memory Channels |
16 |
| Mode |
F2D / F3E |
| Antenna Impedance |
50Ω |
| Analogue Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤ 70dB |
≤ 60dB |
| Inter-Modulation |
≤ 65dB |
≤ 65dB |
| Spurious Response |
≤ 70dB |
≤ 70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Squelch Sensitivity |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Output Power |
UHF : 4W / 1W |
| Analogue Receiver |
| |
Wide |
Narrow |
| Modulation |
16K F3E |
11K F3E |
| Effective Radiation Power |
≥70dB |
≥60dB |
| Spurious Response |
≥60dB |
≥60dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Max Offset |
±5KHZ |
±2.5KHZ |
| Frequency Stability |
±2.5PPM |
| Audio Distortion |
≤5% |
| Sensitivity |
UHF : 0.25uV(12dB SINAD) |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-014 |
|
CHA-015 |
|
|
|
| Battery , 2500mAh |
|
Charger |
| |
|
|
| CHA-015 |
|
ANO-011 |
|
|
|
| Power Supply Adapter |
|
Antenna |
| |
|
|
| OTH-005 |
|
OTH-002 |
|
|
|
| Hand Strap |
|
Belt Clip |
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| CCO-002 |
|
ELO-006 |
|
|
|
| Car Charger |
|
Eliminator |
| |
|
|
| CHA-031 |
|
PCO-009 |
|
|
|
| USB Charging Cable |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| CHA-032 |
|
SMO-002 |
|
|
|
| Six-way Charger |
|
Speaker |
| |
|
|
|
| |
