kg-wv966

4G LTE Public Network And UV Dual Bands

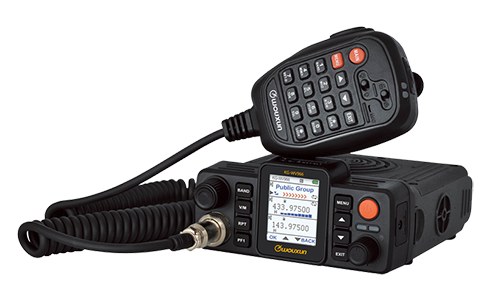

Car Mobile Radio KG-WV966

MAIN  FUNCTION
  • Customizable Phone Call Function
  • Compatible With 4G / 3G / 2G Public Network
  • Network to Analogue , Analogue to Network ,
    Analogue to Analogue
  • Duplex Work at A / B / C Areas , One Area TX , Another Area RX
  • QT / DQT Scan
  • Single Tone Pulse Frequency , 1000 / 1450 / 1750 / 2100 KHz
  • VOX and SOS Function
  • Incoming Message Display Caller ID
  • DTMF Encoding And Decoding
  • All Calls , Group Calls And Selective Calls
  • Priority Scan Function
  • Remote Alarm
  • Wide / Narrow Bandwidth Selection (12.5 / 25 KHz)
  • Chinese or English Voice Guide
  • Reverse Frequency
  • Stopwatch , Scramlber , Compander
  • Supprot RealPTT Public Network Platform


TECHNICAL  SPECIFICATION

General
Audio Power ≤500 mW
Operating Temperature -20 ℃~+40 ℃
Voltage 13.8 VDC



Public Network
Work Frequency Compatible With 4G / 3G / 2G
Max TX Power 23~25dBm @AII Up Bits
RX Sensitivity -106 dBm



Analogue
Frequency Range   Suitable For Different Countries
  136-174 & 400-470MHz (RX/TX)
  136-174 & 400-480MHz (RX/TX)
  144-148 & 430-440MHz (RX/TX)
  76-108MHz (FM , RX , Setp100K)
Setp 5 / 6.25 / 12.5 / 25 / 50 / 100KHz
Memory Channels 999
Mode F2D / F3E
Antenna Impedance 50 Ω



Analogue Transmitter
  Wide Narrow
Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
Inter-Modulation ≤ 65dB ≤ 65dB
Spurious Response ≤ 70dB ≤ 70dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Squelch Sensitivity ≥45dB ≥40dB
Audio Distortion ≤5%
Output Power 25W



Analogue Receiver
  Wide Narrow
Modulation 16K F3E 11K F3E
Effective Radiation Power ≥70dB ≥60dB
Spurious Response ≥60dB ≥60dB
Audio Response 1~-3dB(0.3~3KHz) 1~-3dB(0.3~3KHz)
Max Offset ±5 KHZ ±2.5 KHZ
Frequency Stability ±2.5 PPM
Audio Distortion ≤5%
Sensitivity UHF : 0.25uV(12dB SINAD)
VHF : 0.25uV(12dB SINAD)
