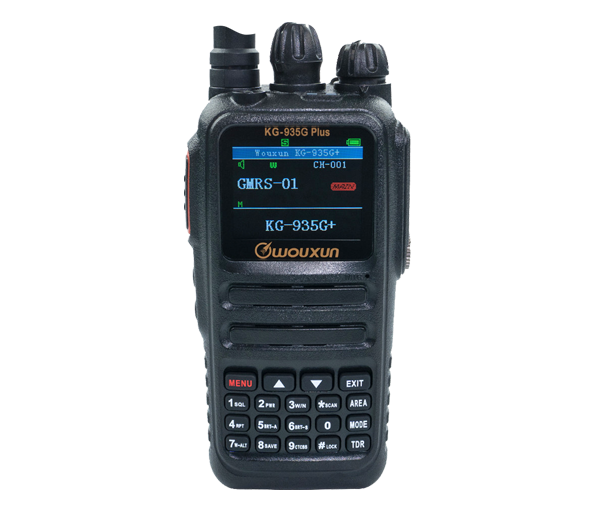

GMRS Two Way Radio KG-935G Plus

kg-935g-plus
 Product Resource And Related Webpage Link
... Send Personal Order
... Distributor Batch Procurement





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • 15 High Powered GMRS Simplex Channels
  • 8 Low Powered Simplex Channels
  • All 8 GMRS Repeater Max 5.5 Watts of Power
  • Dual Receive Capability on Both UHF And VHF Bands
  • A Built-in NOAA Weather Mode With Improved Weather Alerts
  • Standard And Non-Standard CTCSS Tones And DCS Codes
  • CTCSS / DCS Tone Scan
  • Priority Channel Scan
  • Channel And Frequency Modes
  • VOX Function
  • Busy Channel Lockout
  • Three Selectable Power Levels
  • Selectable Wide And Narrow Band Width
  • Group Call / All Call / Selective Call
  • English Voice Prompts
  • Programmable Function Keys
  • FM Radio Mode
  • Built-in Stopwatch
  • Favorite Channels
  • Customizable Area Message
  • Improved Text Entry Via The Keypad And PF Key Quick Guide
  • Large And Full Color Display Screen
  • Dual Frequency Display That Accommodeate One or Both A and B Areas
  • Display Channel Names / Number or Frequency , Plus Incoming Caller ID
  • 4 Display Color Themes , Plus 6 Additional Themes For Even More Customization
  • Ten Themes
  • Full DTMF Backlit Keypad
  • TX And RX LED Indicators
  • Two Programmable Side Keys
  • Louder Speaker
  • Brighter Built-in Flashlight
  • A New BRIGHT+ PF Key Option to Quickly Increase The Active Display Brightness
  • Rated IP66 For Dust And Water Protection
  • Channel Wizard Feature That Allows You to Quickly Program a Simplex or Repeater
    Channel Into The Radio Directly From The Keypad With Amazing Ease
  • Li-ion Battery Pack With a USB-C Charging Port
  • GMRS Repeater-Capable Radio

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range     23 GMRS Channels
    8 GMRS Repeater Channels
   136-174 & 400-480 MHz , RX
   Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF / VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5 PPM
   Audio Distortion ≤5%
   Output Power 5.5W / 2W / 0.5W


STANDARD  ACCESSORY
BLO-016-USB-C   CHA-028   CHA-028   ANO-039
battery BLO-016-USB,Battery

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 2600mAh   Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
