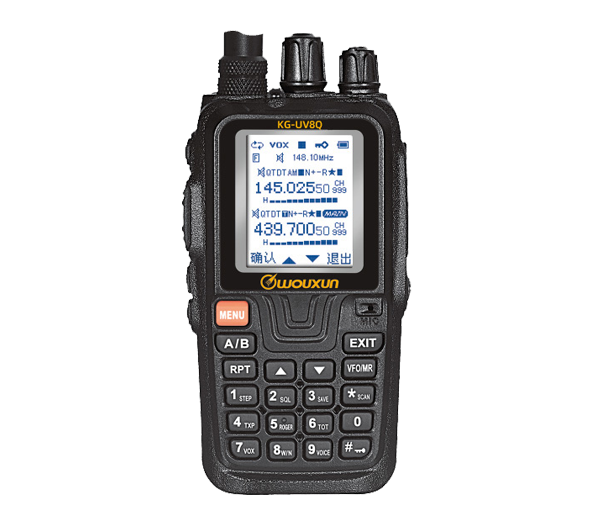

Dual Band , Two Way Radio KG-UV8Q

kg-uv8q

Product Resource And Related Webpage Link

... Send Radio Order Message





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
CUSTOMER  REVIEW
PRODUCT  LIST

MAIN  FUNCTIONS
  • Dulex Repeater (VHF to UHF or UHF to VHF)
  • Duplex Work Mode (TX on One Area While RX on The Other Area Simultaneously)
  • Dual Receiving (RX on The Same / Different Bands of A&B Areas Simultaneously)
  • Dual Band Display on Large Screen , Two Independent Operation System
  • Frequency Offset and Direction Programmable in Repeater Mode
  • Cross-Band Repeater
  • 999 Memory Channels
  • QT/DQT Encoding / Decoding , QT/DQT Scan
  • VOX and SOS Funcion
  • Multi Definition for Sidekeys
  • Chinese / English Screen Display , Voice Guide
  • Incoming Message Display Caller ID
  • DTMF Encoding and Decoding
  • Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency : 2100Hz / 1750Hz / 1450Hz / 1000Hz
  • Reverse Frequency
  • Stopwatch
  • All Calls , Group Calls , Selective Calls
  • Priority Scan Function
  • Remote Alarm

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

144-146 MHz (TX & RX)
430-440 MHz (TX & RX)

   Step 5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz
   Channel Number 999
   Work Mode F2D/F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50Ω
   Weight 490 g
   Size 125 x 62 x 33 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5.0KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:4W , L:1W    VHF H:5W , L:1W


STANDARD  ACCESSORY
BLO-008   CHA-023   OTH-001   ANO-011
battery ...

charger ...

belt ...

antenna ...
Li-ion Battery Pack , 1700mAh   Desktop Charger   Belt Clip   Antenna

OTH-005
hand strap ...

Hand Strap

OPTIONAL  ACCESSORY
BLO-009   CHA-010   LCO-003   PCO-009
battery ...

charger ...

case ...

usb cable ...
Li-ion Battery Pack , 2600mAh   Six-way Charger   Leather Case   USB Programming Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset ...

earphone ...

headset ...

earphone ...
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-001   ELO-003
speaker ...

speaker ...

car charger ...

eliminator ...
Speaker   Speaker   Car Charger   Eliminator

ANO-011   AAO-001   AAO-002
antenna ...

adaptor ...

adaptor ...

Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
