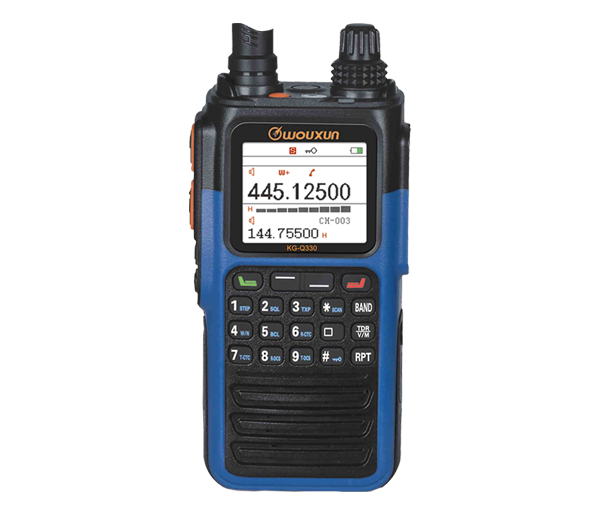

UV Dual Bands Two Way Radio KG-Q330

kg-q330
 Product Resource And Related Webpage Link
... Send Personal Order
... Distributor Batch Procurement





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • Busy Channel Lockout
  • CTCSS / DCS Programmable
  • Scan Group
  • Call Code
  • Scrambler
  • Compander
  • AM Mode SW
  • Battery Save Mode
  • Transmit Timeout Timer
  • Transmit Timeout Alert
  • Customerize-Made Software Supported
  • Multi Keys Options
  • Priority Channel
  • Repeater PTT
  • Theme
  • GPS (optional )
  • Time Zone
  • Two Menu System
  • Waterproof IP67 (Optional)
  • FM Radio
  • USB-C Charging

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range 136-174 & 400-480 MHz
   Frequency Step 2.5 / 5.0 / 6.25 / 8.33 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4VDC
   Antenna Impedance 50Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF / VHF : -119.0dBm SINAD 13dB

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:5W , M:2W , L:1W
VHF H:4W , M:2W , L:1W


STANDARD  ACCESSORY
BLO-032   CHA-035A   CHA-035B   OTH-005
battery ...

charger ...

adaptor ...

hand-strap ...
Li-ion Battery Pack   Desktop Charger   Power Supply Adaptor   Hand Strap

ANO-056   ANO-057   OTH-001
antenna ...

antenna ...

belt-clip ...

Short Antenna   Long Antenna   Belt Clip
