Professional Two Way Radio Manufacturer
...

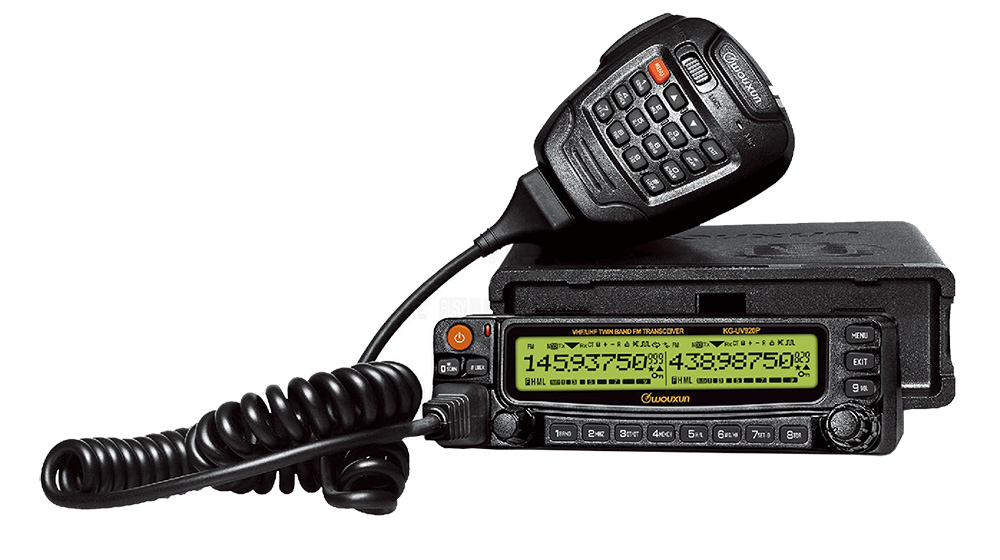

Dual System , Dual Frequency , Car Mobile Radio KG-UV920P

.

kg-uv920p

Buy Radio Now
RADIO  FUNCTION
  • Band Can be Set Freely
  • Dual Display , Dual Reception
  • Two Completely Independent Operating System
  • Area Scanning Management Capability
  • Remote-Head Mounting Capability
  • UHF / VHF or VHF / UHF Cross-Band Repeater Function
  • Both Stations Can Form Combined Same or Different Band Repeat
  • Multiple Speaker Channel Setting
  • DTMF Hand Microphone
  • Incoming Message Display
  • DTMF Encoding And Decoding
  • Group Calls , All Calls And Selective Calls
  • Priority Channel Scanning
  • APO Power Management
  • English Voice Guide
  • Minimum Operating Voltage Alarm
  • Stun And Kill Function
  • Single Tone Pulse Frequency = 1000 / 1450 / 1750 / 2100Hz
  • Selectable Three Color Backlight
  • Reduced Noise Setting
  • Remote Control Setting
  • Frequency / Channel Scanning With CTCSS / DCS Detection
  • Multiple Cooling Paths Fan
  • 8 Group Scrambler
  • Programmable By Computer

TECHNICAL  SPECIFICATION
General
   Frequency Range

   Suitable For Different Countries or Areas
   TX , RX
   136-174 & 400-480 MHz
   136-174 & 216-280 MHz
   RX , FM
   65-108 MHz
   Step 5.0 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃ ～ +60℃
   Voltage 13.8VDC ± 15%
   Antenna Impedance 50 Ω
   Weight 1438 G
   Dimension 140 x 44 x 207 MM
Transmitter
  Wide Narrow
   Adjacent Channel Power ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Signal to Noise Ratio ≥40dB ≥36dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KHz )
   Output Power VHF( 5 / 10 / 20 / 50W ) , UHF( 5 / 10 / 20 / 40W )

Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KHz )
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power Transceiver ≤ 3W , Hand Microphone ≤ 1W
   Sensitivity UHF / VHF ： 0.25µV （12dB SINAD ）

STANDARD  ACCESSORY
Send Accessory Inquiry
Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

MMO-001

SAO-001

SAO-002

MBO-001
microphone MMO-001,Hand-Microphone

switchboard-panel SAO-001,Inclined-Switchboard-Panel

switchboard-panel SAO-002,Flat-Switchboard-Panel

bracket MBO-001,Mounting-Bracket
Hand Microphone   Inclined Switchboard Panel   Flat Switchboard Panel   Mobile Mounting Bracket

RBO-001

PWO-002

SCO-002

SSO-001
panel-bracket RBO-001,Front-Panel-Bracket

cord PWO-002,Power-Cord

cable SCO-002,Extension-Cable

screw SSO-001,Screw-Set
Remote Front Panel Bracket   Power Cord   Extension Cable   Screw Set

FUO-001



fuse FUO-001,Fuse



Fuse , 32V-15A

OPTIONAL  ACCESSORY
SPO-002   PCO-003   ANO-015   ANO-016
power SPO-002,Switching-Power

cable PCO-003,USB-Cable

antenna ANO-015,Antenna

mount ANO-016,Magnetic-Mount
Switching Power , 30A   USB Programming Cable   Antenna   Strong Magnetic Mount
