	KG-978 With Waterproof And Fashion Display , Superheterodyne Receiver Type

CLICK HERE CLOSE LIST

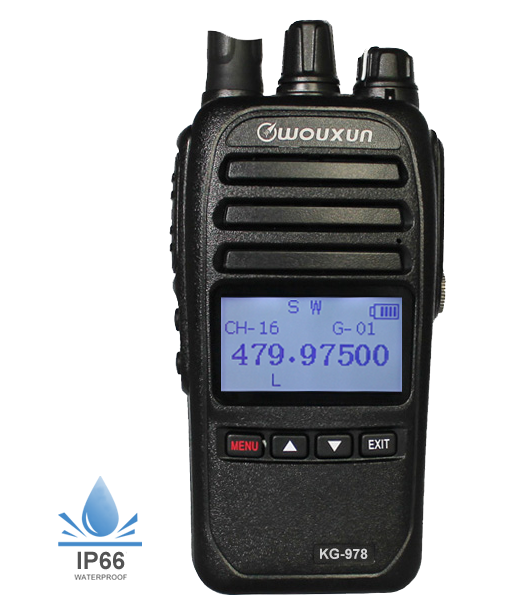

	The KG-978 portable analog radio is specifically designed to tackle harsh working environments, offering outstanding IP66 dust and water protection. The KG-978 will ensure your productivity and communications aren't hampered by noise or dirt, making it the ideal companion for the construction industry.

Unique Easy-Grip Design Provides Increased
Security Against Dropping
Patented Battery Latch , This Latch Prevents Separation of The Battery And The
Radio if Dropped.

Long Battery Life
2600mAh High Capacity Li-Ion Battery Lasts Approximately 48hrs

IP66 Protection
The Ingress Protection Reaches IP66

Voice Operated Transmit (VOX)
Hands-Free Transmit is Possible, When Paired With a Compatible Accessory.

Discrete Version
An All Black Version is Available When Using For Discrete Applications Such
As Casinos, Funeral Escorts, Security, and Hotels.

MAIN FUNCTIONS

DTMF Encoding and Decoding
Begin and End Transmitting Beep Prompt
105 Groups DCS , 50 Groups CTCSS
CTCSS Scan and DCS Scan
Voice Guide
Superheterodyne Receiver Type
Channel Name Edit and Display
Battery Capacity Prompt
Programmable by Computer
Bandwidth Selectable

Reverse Frequency Function
Multi Scan Mode (TO / CO / SE)
Displaying Mode : Frequency / Channel / Channel Name
TOT (Time-out Timer)
Busy Channel Lockout
Keypad Lock (Auto / Manual)
Wire-clone Function
Waterproof IP66


TECHNICAL SPECIFICATION

Intergration
Frequency Range	Can be Suitable For Different Countries or Areas VHF : 66-88 / 136-174 MHz UHF : 400-470 MHz
Memory Channels	256
Frequency Stability	±2.5 PPM
Operating Voltage	7.4 VDC
Operating Temperature	-30℃～+60℃
Waterproof	IP 66
Antenna Impedance	50Ω
Operating Way	Simplex of Co-channel or Dis-channel

Transmitter
Frequency Stability	±2.5 PPM
RF Carrier Power	UHF: 4W , VHF: 5W
Effective Radiation Power	Power Changes Not Exceed Preset Value ±7.5dB
Max. Frequency Deviation	Channel Space: 25KHz ±5KHz Channel Space: 12.5KHz ±2.5KHz
Audio Modulation	+3dB (Pre-emphasis by 6dB Between 0.3-3KHz)
Adjacent Channel Power	Channel Space: 25KHz ≥70 dB Channel Space: 12.5KHz ≥60 dB
Spurious Radiation	≤-30dBm
Inter Modulation Attenuation	≥40dB
Modulation Distortion	≤10%
Residual FM	≤-35dB
Residual AM	≤3%

Receiver
Sensitivity (12dB SINAD）	0.16µV
Squelch Rejection Sensitivity	≤0.8µV
Squelch Sensitivity	≤0.2µV
Audio Output Power	500mW
Audio Distortion	≤5%
Audio Response	(300-3000Hz) +1 to -3dB
Co-channel Rejection	≥-8.0dB
Performance of Amplitude Limiter	≤3
Adjacent Channel Selection	Channel Space: 25KHz ≥70 dB Channel Space: 12.5KHz ≥60 dB
Inter-modulation	≥65 dB
Resistance	≥84 dB
Spurious Radiation	9KHz-1GHz≤-57dBm 1GHz-4GHz≤-47dBm


STANDARD ACCESSORY

BLO-016	CHA-012	CHA-012	OTH-001

Li-ion Battery Pack , 2600mAh	Charger	Power Supply Adaptor	Belt Clip

OTH-005	ANO-012

Hand Strap	Antenna


OPTIONAL ACCESSORY

BLO-011	CHA-027	LCO-003	PCO-009

Li-ion Battery Pack , 3200mAh	Six-way Charger	Leather Case	USB Cable

HEO-001	HEO-002	HEO-003	HEO-005

Headset	Air Conduit Earphone	Headset	Air Conduit Earphone

SMO-001	SMO-002	CCO-002	ELO-005

Speaker	Speaker	Car Charger	Eliminator

ANO-038	ANO-012	AAO-001	AAO-002

Antenna	Antenna	SL16 Antenna Adaptor	BNC Antenna Adaptor
