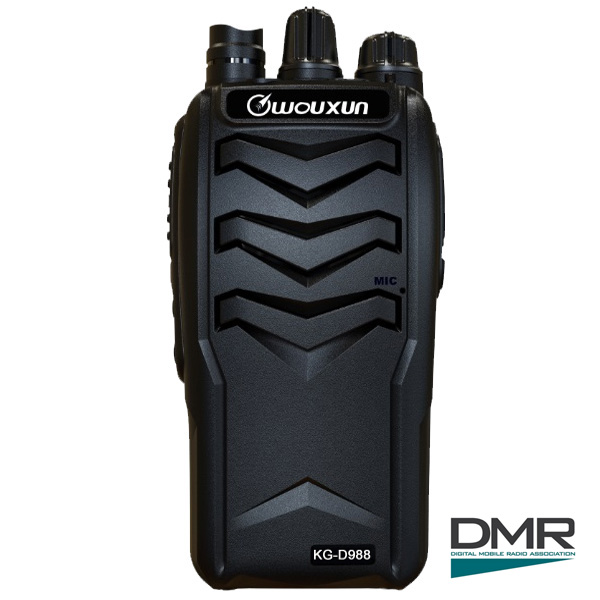

KG-D988

MAIN FUNCTIONS
  • 3072 Channel , 1024 Contacts , 255 Receiving Group
  • 250 Areas , 16 Scan List
  • UHF And VHF
  • Program Key
  • Digit Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • One Touch Relay / Talkaround
  • Transmit Time-out Alert
  • FM Radio
  • Radio Program Password
  • Power Save Mode
  • Tail Elimination
  • Lone Worker
  • Radio Disable or Enable
  • ARTS
  • Detection
  • Waterproof IP67   ( View IP67 Test Report )
  • Call Alert
  • Flashlight
  • CTCSS Encoding And Decoding , Support Non-standard
  • DTMF Encoding and Decoding
  • Firmware Upgrade

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range 136-174MHz , 400-520MHz
   Channel Number 3072
   Operating Temperature -20℃~+40℃
   Antenna Resistance 50Ω
   Working Voltage 7.4 VDC
   Weight 300 g
   Size 64 x 41 x 130 (mm)
Receiver
   Analog Receive Sensitivity 0.25µV@12dB SINAD
   Digital Receive Sensitivity 0.25µV(BER:5%)
   Adjacent Channel Selectivity ≤60dB@12.5KHz
   Audio Response +1dB~-3dB
   Audio Distortion ≤5%
   Audio Power 1W
   Inter Modulation ≥65dB

Transmitter
   FM Modulation 12.5KHz : 11KOF3E , 25KHz : 16KOF3E
   4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD
12.5KHz(Data+Voice) : 7K60FXE
   Adjancent Channel Power ≤-60dB
   Frequency Stability ±1 PPM
   Audio Distortion ≤5%
   Vocoder Type AMBE+2TM
   Audio Response +1dB~-3dB
   Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
   Bit Error Ratio ≤5%
   Modulation Limit ±2.5KHz@12.5KHz
   Output Power UHF ( H : 4W , L : 1W) , VHF ( H : 5W , L : 1W)


STANDARD  ACCESSORY
Send Accessory Inquiry
Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

BLO-016   CHA-012   CHA-012   ANO-033
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 2600mAh   Desktop Charger   Power Supply Adaptor   Antenna , 15CM

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip

OPTIONAL  ACCESSORY
BLO-011   CHA-027   LCO-003   PCO-008
battery ...

charger ...

case ...

usb cable ...
Li-ion Battery Pack , 3200mAh   Six-way Charger   Leather Case   USB Programming Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset ...

earphone ...

headset ...

earphone ...
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-002   ELO-005
speaker ...

speaker ...

car charger ...

eliminator ...
Speaker   Speaker   Car Charger   Eliminator

ANO-012   ANO-038   AAO-001   AAO-002
antenna ...

antenna ...

adaptor ...

adaptor ...
Antenna   Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
